Remove/Install Check Switch For Inter-Axle Differential Lock - AR28.10-P-0100-02B
Model 461, 463 with transfer case 750.65
COMPLETE TRANSFER CASE
| Number | Designation | Model 460, 461 with transfer case 750.6 Model 463 with transfer case 750.6 up to model year 2019 | ||
|---|---|---|---|---|
| BA28.10-P-1007-01B | Indicator switch for interaxle differential lock to shift cylinder | M18X1.5 | Nm | 33 |
- Model 461 with transfer case 750.65
Model 463 with transfer case 750.65
up to model year 2019
Remove indicator switch for differential lock, longitudinal equalization (S76/7) from shift cylinder (1) using
socket wrench socket. Model 461 with transfer case 750.65
Model 463 with transfer case 750.65
up to model year 2019
.
Note version of indicator switch for differential lock.
- Install in the reverse order.

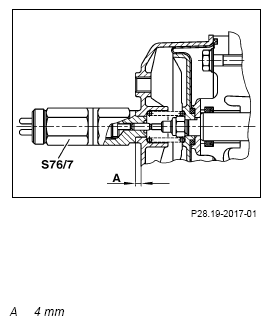

Illustration of version 1

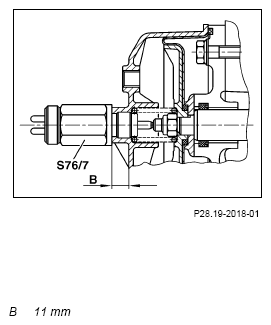

Illustration of version 2, retrofitting of anti-lock brake system (ABS)
Illustration of version 3, housing change as of transmission 02607
