Remove And Install Gearshift System - AR28.60-P-1004B
MODEL 463 with TRANSFER CASE 750.650/651/652/653
| Remove/install | |||
| 1 | Remove transfer case | AR28.10-P-0100B | |
| 2 | Detach gearshift lever cover | AR28.60-P-1002-01B | |
| *BA28.40-P-1019-01A | |||
| Sealant | *BR00.45-Z-1010-01A | ||
| 3 | Remove input shaft. | AR28.50-P-1019B | |

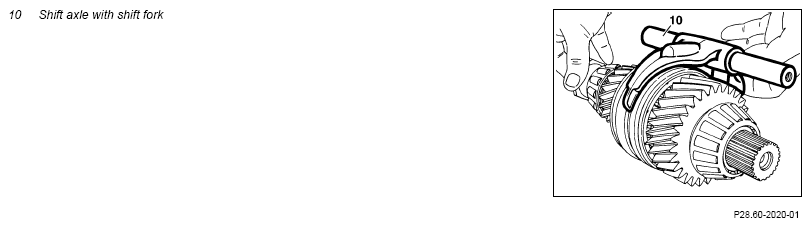

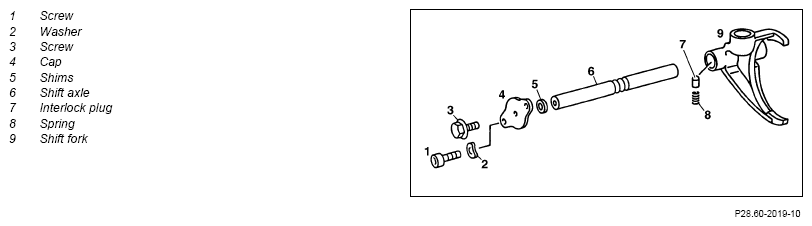

| 4 | Remove shift axle with shift fork (10) | ||
| Checking | |||
| 5 | Clean all parts, check and replace if necessary | ↓ Dismantle, assemble drive shaft. |
AR28.50-P-1017B |
| 6 | Install in the reverse order |
TRANSFER CASE HOUSING
| Number | Designation | Model 461, 463 with VG 750.65 | ||
|---|---|---|---|---|
| BA28.40-P-1019-01A | Mounting of gearshift lever cover | M8 | Nm | 22 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-01A | Sealing compound, Hylomar universal sealant, 80 ml | A 001 989 25 20 |
