Remove/Install Main Components Of Transmission - AR27.50-P-0610W

TRANSMISSION 722.9, 724.2

Courtesy of MERCEDES-BENZ USA

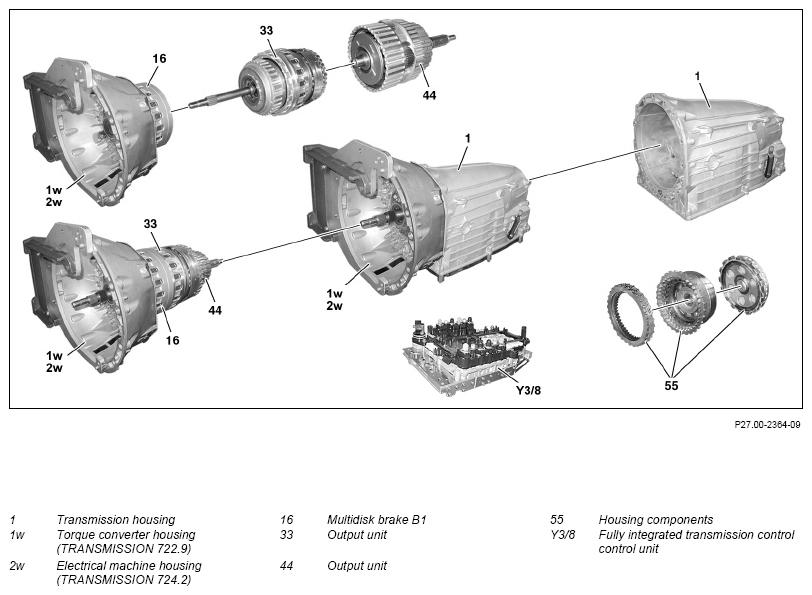

Shown on transmission 722.9

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove fully integrated transmission control controller unit (Y3/8)	TRANSMISSION 722.9	AR27.19-P-0200W
		TRANSMISSION 724.2	AR27.19-P-0200EH
2	Remove transmission housing (1) from the torque converter housing (1w)		AR27.50-P-0601W
3	Remove transmission housing (1) from the electrical machine housing (2w)		AR27.50-P-0601W
4	Remove housing components (55)		AR27.50-P-0782W
		The housing components (55) are the disk pack BR, multidisk brake B2 and parking lock gear.
5	Remove output unit (44)		AR27.50-P-0611W
		The output unit (44) consists of the multidisk clutch K3, rear hollow shaft, rear planet carrier, output shaft and rear ring gear.
6	Remove drive unit (33)		AR27.50-P-0612W
		The drive unit (33) consists of the drive shaft, multidisk clutch K2, front planet carrier, internal plate carrier, multidisk clutch K1 and multidisk brake B3.
7	Remove multidisk brake B1 (16)	TRANSMISSION 722.9 (except 722.93), 724.2 TRANSMISSION 722.9 (except 722.93)	AR27.50-P-0721W
8	Remove oil pump	TRANSMISSION 722.9, 724.2
		TRANSMISSION 724.2 in MODEL 212.095/195 with ENGINE 276.9 TRANSMISSION 724.2 in MODEL 212.098/298 with ENGINE 651.9	AR27.40-P-0500EH
9	Install in the reverse order
