Remove/Install Main Components Of Transmission - AR27.50-P-0610EWM
Transmission 725.0/1

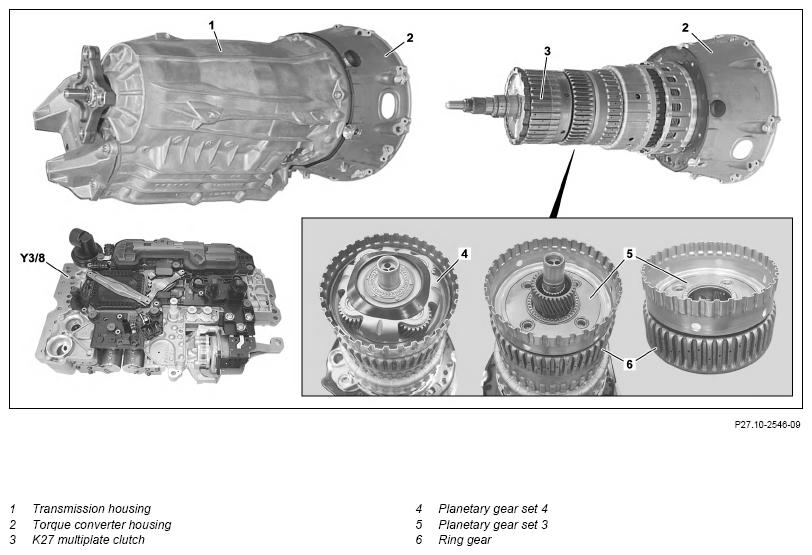

Shown on transmission 725.0 (except 725.007/017/037/047)
Shown on transmission 725.0 (except 725.007/017/037/047)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1.1 | Remove transmission housing (1) from torque converter housing (2). | Transmission 725.0 (except 725.007/017/037/047) | |
| AR27.50-P-0601EWM | |||
| 1.2 | Remove transmission housing (1) from adapter housing. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 Transmission 725.047 Transmission 725.1 |
|
| Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 Transmission 725.047 |
AR27.40-P-0560MRD | ||
| Transmission 725.1 | AR27.40-P-0560EWO | ||
| 2 | Remove multiplate clutch K27 (3). | AR27.50-P-0619EWM | |
| 3 | Remove planetary gear set 4 (4) and planetary gear set 3 (5) with ring gear (6). | AR27.50-P-0623EWM | |

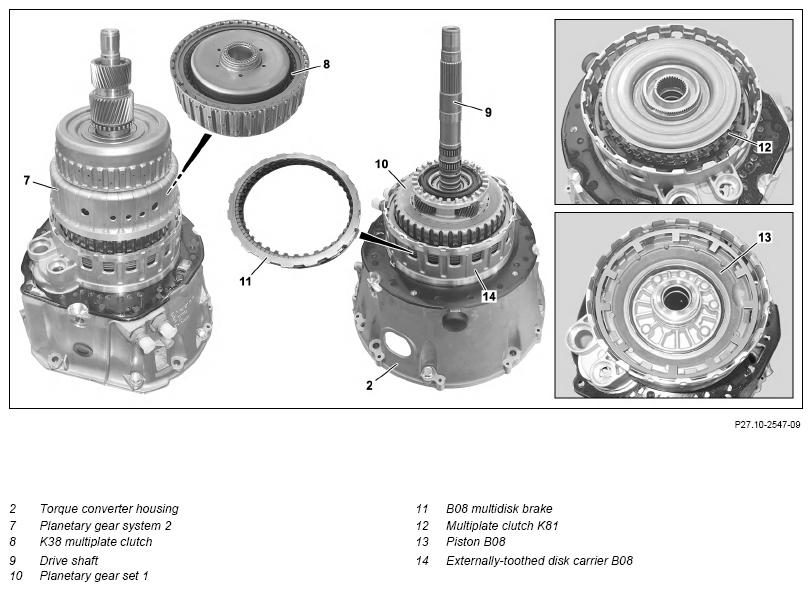

| 4 | Remove planetary gear set 2 (7) and multiplate clutch K38 (8) with ring gear. | AR27.50-P-0624EWM | |
| 5 | Remove drive shaft (9), planetary gear set 1 (10) with multidisk brake B08 (11) and multiplate clutch K81 (12). | AR27.50-P-0625EWM | |
| 6 | Remove piston B08 (13). | AR27.50-P-0618EWM | |
| 7.1 | Remove outer plate carrier B08 (14) from torque converter housing (2). | Transmission 725.0 (except 725.007/017/037/047) | AR27.50-P-0617EWM |
| 7.2 | Remove outer plate carrier B08 (14) from adapter housing. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 Transmission 725.047 Transmission 725.1 |
|
| Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 Transmission 725.047 |
AR27.50-P-0627MRD | ||
| Transmission 725.1 | AR27.50-P-0627EWO | ||
| 8 | Install in the reverse order. |
