Remove/Install Tire Pressure Monitoring System Control Unit - AR40.15-P-0100GW
Model 463
as of model year 2013 up to model year 2019

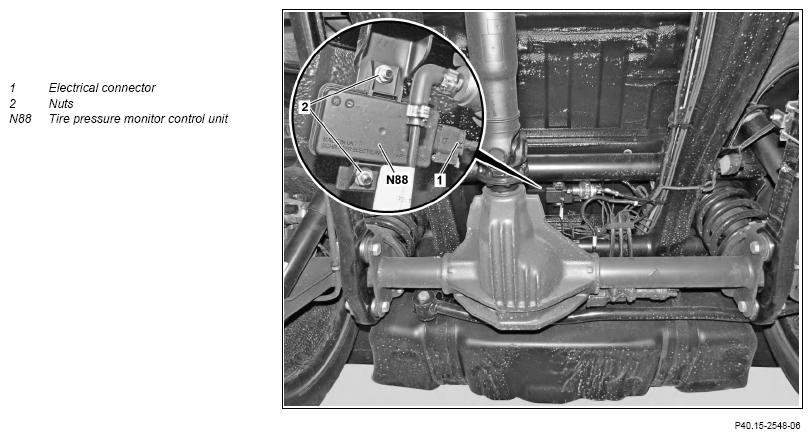

Shown on MODEL 463 as of model year 2013

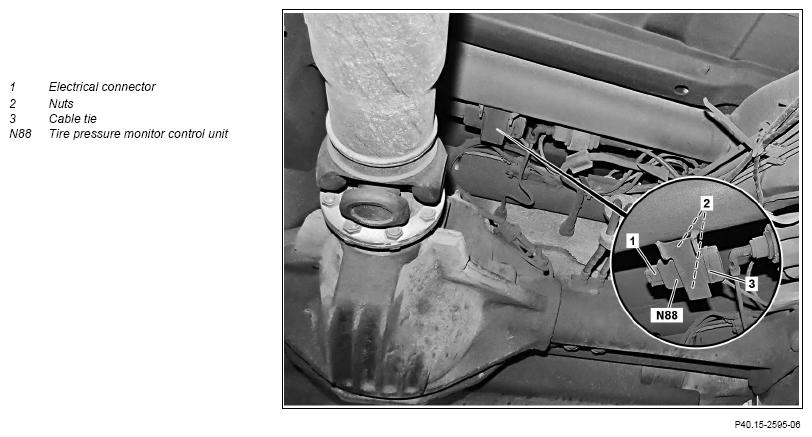

Shown on MODEL 463 as of model year 2014
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Read out data from tire pressure monitor control unit (N88) using the diagnostic system | When removing tire pressure monitor control unit (N88). | AD00.00-P-2000-04A |
| 2 | Switch off ignition | ||
| 3 | Lift vehicle on vehicle lift | AR00.60-P-1000G | |
| 4 | Cut cable tie (3) | Model 463 as of model year 2014 up to model year 2019 |
|
| 5 | Disconnect electrical connector (1) | ||
| 6 | Unscrew nuts (2) | ||
| 7 | Remove tire pressure monitor control unit (N88) | ||
| 8 | Install in the reverse order | ||
| 9 |
Transfer previously read out data using the diagnostic system to the new tire pressure monitor control unit (N88) | When removing tire pressure monitor control unit (N88). | AD00.00-P-2000-04A |
| 10 | Activate the tire pressure monitoring system |
