Remove/Install Tire Pressure Monitoring Control Unit - AR40.15-P-0101XG
Model 463
as of model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Carry out commissioning of tire pressure monitoring system control unit (N88) using vehicle diagnosis system. | When removing tire pressure monitor control unit (N88). | AD00.00-P-2000-04B |
| 2 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||
| 3 | Raise vehicle using vehicle lift. | AR00.60-P-1006A | |

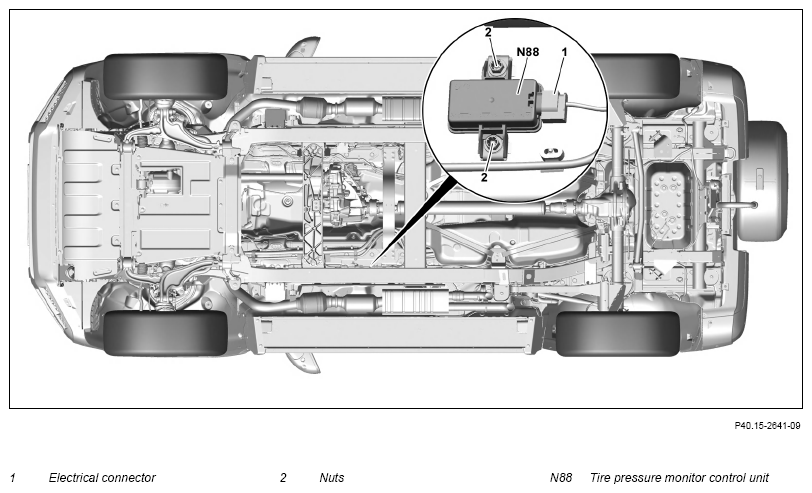

| 4 | Disconnect electrical connector (1). | ||
| 5 | Unscrew nuts (2). | ||
| 6 | Remove tire pressure monitoring system control unit (N88). | ||
| 7 | Install in reverse order. | ||
| 8 | Activate tire pressure monitoring system using instrument cluster. | AR54.30-P-1001-01XG |
