Recall Campaign 2024090003 - Update Engine Control Unit Software (2024090003)

Publication date: 2024-11-22
Reference number: 2024090003

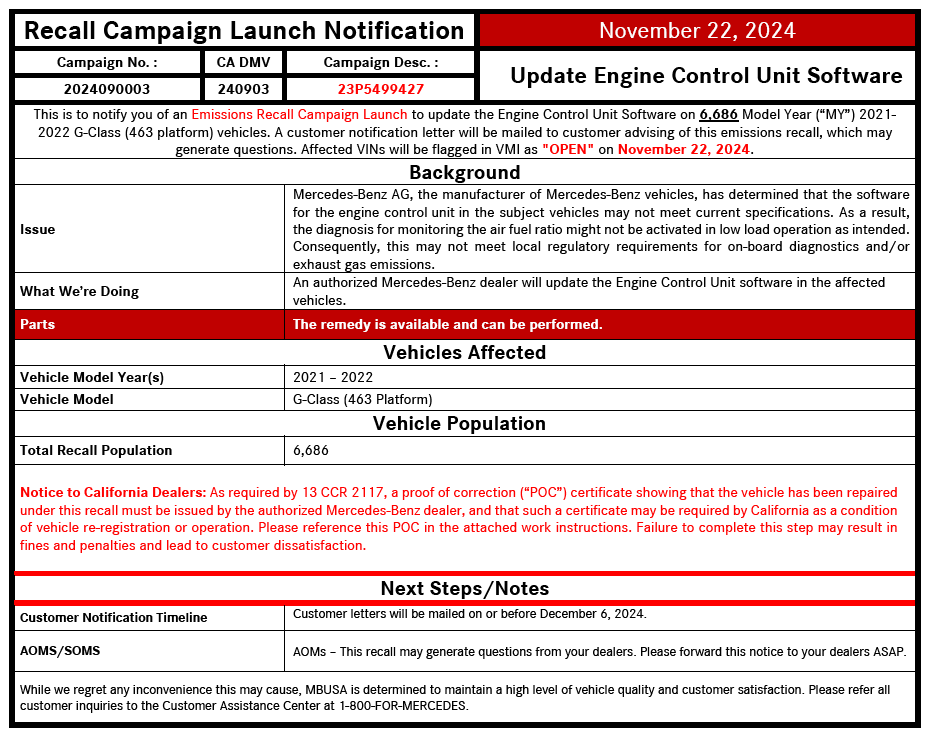

RECALL CAMPAIGN 2024090003 - UPDATE ENGINE CONTROL UNIT SOFTWARE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 2024090003, Date of Issue: November 22, 2024

MERCEDES-BENZ:

Model G-Class (463 platform) Model Year 2021 - 2022

SERVICE INFORMATION

IMPORTANT EMISSIONS RECALL CAMPAIGN INFORMATION

Please see the attached documents related to the campaign listed above.

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-MERCEDES.

Sincerely,

Gregory Gunther

Senior Manager, Vehicle Compliance & Analysis

Campaign No. 2024090003, November 2024

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model G-Class (463 platform)

Model Year 2021 - 2022

Update Engine Control Unit Software

Mercedes-Benz AG, the manufacturer of Mercedes-Benz vehicles, has determined that the software for the engine control unit in the subject vehicles may not meet current specifications. As a result, the diagnosis for monitoring the air fuel ratio might not be activated in low load operation as intended. Consequently, this may not meet regulatory requirements for on-board diagnostics and/or exhaust gas emissions. An authorized Mercedes-Benz dealer will update the Engine Control Unit software in the affected vehicles.

Prior to performing this Campaign:

VMI must be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns and perform accordingly.
Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Approximately 6,686 vehicles are included.

Order No. P-RC-2024090003

Update Engine Control Unit Software

Model 463

Always use the latest XENTRY Diagnosis software release with all available add-ons.
Follow the operation steps exactly as described in XENTRY Diagnosis.
Use a charger to ensure sufficient power supply to the vehicle's on-board electrical battery system (greater than 12.5 V).
If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure Step 2 .
If two or more software updates or SCN codings are performed during a single workshop visit, operation items 02-4762 and 02-5058 may be invoiced only on one of the workshop orders .

WORK PROCEDURE

Connect XENTRY Diagnosis.
Update Engine Control Unit software.
To do so, select menu item "Quick test view → N3/10 - Motor electronics 'MED1775' for combustion engine 'M176' (ME) or 'M177' (ME) or 'M178' (ME) → Adaptations → Control unit update → Updating of control unit software".

Then follow the user guidance in XENTRY Diagnosis.
Disconnect XENTRY Diagnosis.

NOTE: The following allowable labor operation should be used when submitting a warranty claim for this repair:

WARRANTY INFORMATION

Damage Code

Operation Number

Description

Labor Time (hrs.)

54 994 27

02-9334

Update Engine Control Unit software
(with XENTRY Diagnosis connected)

0.1

02-4762 ⁽¹⁾

Connect/disconnect diagnostic system
(XENTRY Diagnosis)

0.1

02-5058 ⁽¹⁾

Connect/disconnect starter battery charger
(with XENTRY Diagnosis connected)

0.1

⁽¹⁾	Invoice operation item only once for each workshop order.

NOTE: Always check Xentry Operation Time (XOT) for the current OP-Code times. Labor times are subject to change and updates may not be reflected in this document.

The following step applies to California dealers only.

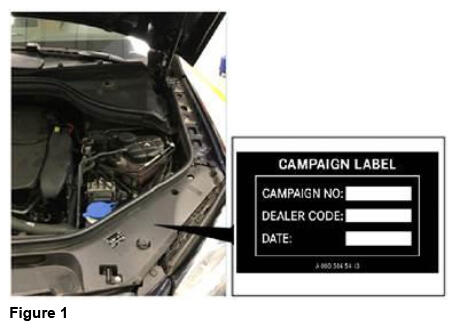

Apply Proof of Correction Label (A 000 584 54 13) to area identified in Figure 1. Fill in the blank areas of the label. The "Campaign No. " for the California Proof of Correction is unique and must be entered as such (240903) , your "Dealer Code ", and the "Date " of the repair, using a black permanent marker.

NOTE: Clean bonding surface prior to affixing label.

The following step applies to California dealers only.

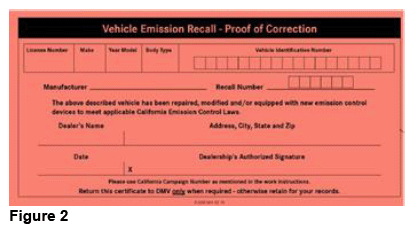

Provide the owner with the completed and signed Proof of Correction Certificate (A 000 584 42 14) (Figure 2) , after you scan a completed form and attach to the RO. The recall number for the California Proof of Correction Certificate is unique and must be entered as such (240903) .

CALIFORNIA PROOF OF CORRECTION PARTS INFORMATION

Qty.	Part Name	Part Number
1	Proof of Correction Certificate (CA Dealers Only)	A 000 584 42 14
1	Proof of Correction Label (CA Dealers Only)	A 000 584 54 13

WARRANTY INFORMATION (CALIFORNIA DEALERS PLEASE SUBMIT CLAIM ON A SEPARATE LINE OF THE SAME RO AS THE CAMPAIGN)

WARRANTY INFORMATION

Damage Code	Operation Number	Description	Labor Time (hrs.)
212CA 00	02-0001	Apply Proof of Correction Label and completed Proof of Correction Certificate	0.1
