Remove/Install Starter - AR15.30-P-7100XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003XG | |
| 2 | Remove lower engine compartment paneling. | AR61.20-P-1105XG | |
| 3 | Remove low-temperature circuit switchover valve mounting support. | AR09.41-P-1240XGC | |

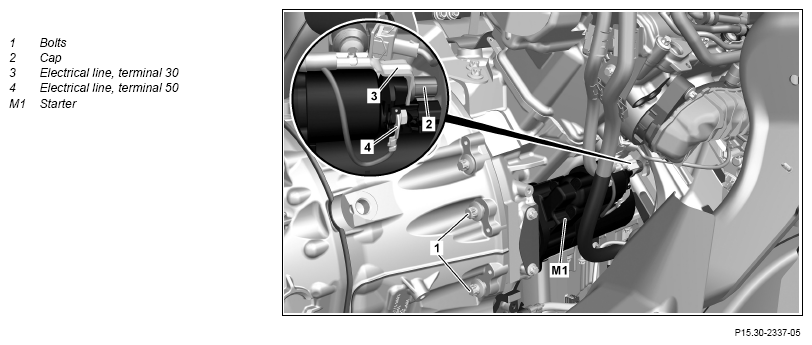

| 4 | Remove cover (2) of the electric line circuit 30 (3). | ||
| 5 | Remove nut of the circuit 30 electric line (3). | *BA15.30-P-1004-01T | |
| 6 | Remove nut of the circuit 50 electric line (4). | *BA15.30-P-1003-01T | |
| 7 | Disconnect electric line circuit 30 (3) from starter (M1). | ||
| 8 | Disconnect electric line circuit 50 (4) from starter (M1). | ||
| 9 | Remove engine support at the front right. | AR22.10-P-4322XGC | |
| 10 | Remove bolts (1). | *BA15.30-P-1001-01T | |
| 11 | Remove starter (M1) downward. | ||
| 12 | Check pinion of the starter (M1) for wear and damage. | If there is a problem, ↓ Replace starter (M1). |
|
| 13 | Turn engine at center bolt of the crankshaft in the direction of engine rotation and check starter ring gear on the flywheel for wear and damage. | If the pinion of the starter (M1) is damaged. | |
| Fig 2 | |||
| If there is a problem, ↓ replace die drive plate. |
|||
| AR03.30-P-8003XGC | |||
| 14 | Install in the reverse order. | ||
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform engine test run and check starter (M1 for proper operation. |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1001-01T | Bolt, starter to crankcase and transmission | Nm | 40 |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1003-01T | Nut, connection for terminal designation 50 | Nm | 9 |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1004-01T | Nut, connection for terminal designation 30 | Nm | 16 |
