Remove/Install Starter - AR15.30-P-7100MNF

Engine 176 in model 463

up to model year 2019

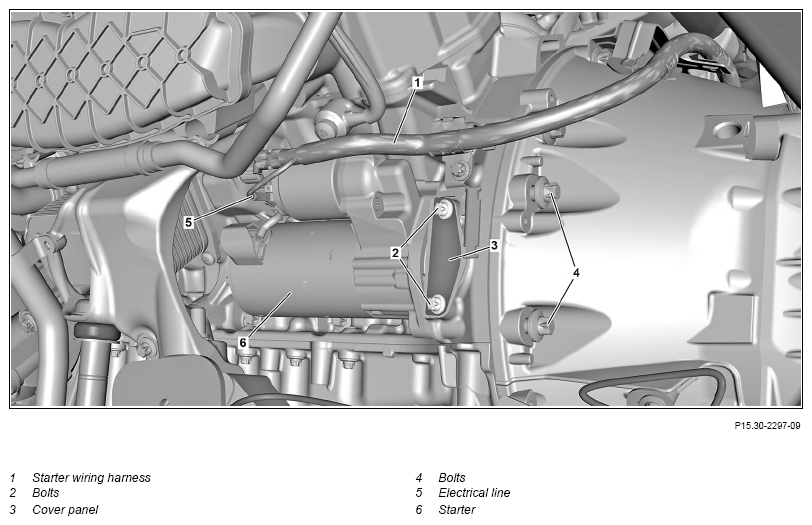

Fig 1: Starter Components Location - Engine 176 In Model 463 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach battery ground line	Engine 176 in model 463 up to model year 2019
		Engine 176 in model 463 (except 463.234) as of model year 2013 up to model year 2019	AR54.10-P-0003GW
2	Detach starter wiring harness (1) on crankcase	Bolt, starter wiring harness to oil pan/crankcase/cylinder head/firewall	*BA15.30-P-1002-01T
3	Unclip starter wiring harness (1) on transmission
4	Remove screw/bolts (2) and remove cover panel (3)
5	Remove bolts (4)	Bolt, starter to crankcase and transmission	*BA15.30-P-1001-01T
6	Detach starter wiring harness (1) and electrical line (5) on starter (6)		AR15.30-P-7100-03MNA
		Nut, connection for terminal designation 50	*BA15.30-P-1003-01T
		Nut, connection for terminal designation 30	*BA15.30-P-1004-01T
7	Remove starter (6) downward
8	Check ring gear on drive plate for damage	When installing a new starter (6). Rotate engine at center Bolt, crankshaft in the direction of engine rotation. If damage is present ↓ Replace drive plate
			AR03.30-P-8001MNA
9	Install in the reverse order
