Remove/Install Ignition Coils - AR15.12-P-2003MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Shown on model 205 with Engine 177

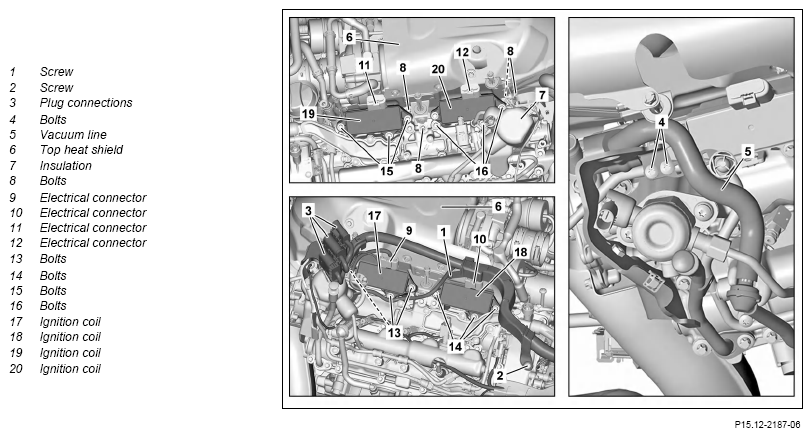

Fig 1: Ignition Coils Components Location - Engine 176 In Model 463 Up To Model Year 2019 (Shown On Model 205 With Engine 177)

Courtesy of MERCEDES-BENZ USA

Shown on model 205 with Engine 177

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01V
	Remove/install
1	Remove right air filter housing.	When removing ignition coils (17, 18).
			AR09.10-P-1150MNA
2	Remove left-hand air filter housing.	When removing ignition coil (19).
			AR09.10-P-1150MNA
3	Remove right and left air filter housings.	When removing ignition coil (20).
			AR09.10-P-1150MNA

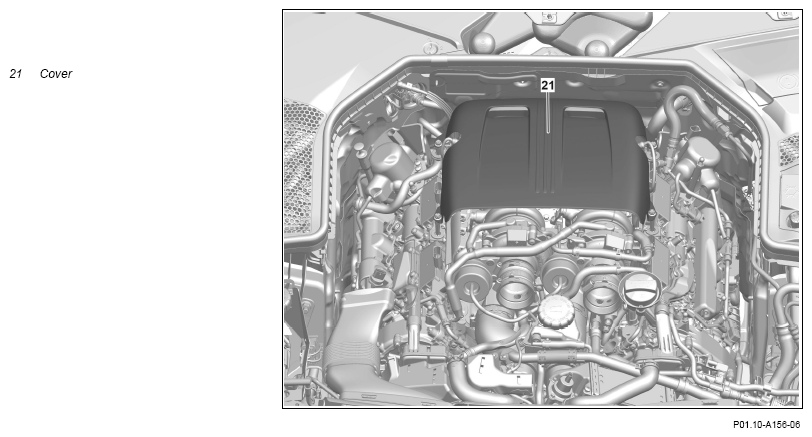

4	Remove cover (21).	Engine 177 in model 205
5	Remove screw/bolts (1, 2).	When removing ignition coil (18).
		Bolt, engine wiring harness to cylinder head cover	*BA15.18-P-1001-01G
6	Unclip electrical plug connections (3) at right crash plate.	Engine 177 in model 205 When removing ignition coil (17).
7	Remove screws (4).	When removing ignition coil (17).
		Engine 176 in model 463 up to model year 2019Bolt, vacuum pump to cylinder head	*BA43.05-P-1002-01B
		Engine 177 in model 205Screw/bolt, bracket of vacuum line to shield plate of high-pressure pump	*BA43.05-P-1002-01O
8	Remove vacuum line (5) from vacuum pump and seal openings with suitable stop plugs.	When removing ignition coil (17).
		Record plug	Fig 2
9	Remove upper heat shield (6) of left and right exhaust gas turbocharger.	When removing ignition coil (20).
			AR09.40-P-6026MNA
10	Remove insulation (7).	When removing ignition coil (20).
11	Unscrew bolts (8) and place heat shield to one side.	When removing ignition coil (20).
		Bolt, side heat shield to cylinder head cover	*BA09.40-P-1007-01ZA
12	Release and disconnect electrical connectors (9, 10, 11, 12).
13	Remove screws (13, 14, 15, 16) of ignition coils (17, 18, 19, 20).	Bolt, ignition coil to cylinder head cover	*BA15.10-P-1001-04D
14	Pull out ignition coils (17, 18, 19, 20) with spark plug connectors upwards and remove.	Apply spark plug connector grease before installation of spark plug connector to reduce the draw-off/attachment forces. Otherwise the spark plug connector will be damaged when removed again. : Discharge approx. Fill 1 g of spark plug connector grease into the spark plug connector.
		Spark plug connector grease	*BR00.45-Z-1102-06A
	Check
15	Check ignition coils (17, 18, 19, 20) and spark plug connectors for damage.	If problems exist, ↓ Replace ignition coils (17, 18, 19, 20) or spark plug connectors.
16	Install in the reverse order.
17	Read out fault memory with vehicle diagnosis system and delete if necessary.
		Engine 176 in model 463 up to model year 2019	AD00.00-P-2000-04A
		Engine 177 in model 205	AD00.00-P-2000-04B

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
