Remove/Install Lever For Fuel Tank Fill Level Sensor - AR47.50-P-0112XGE
Model 463
as of model year 2019
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. | AS47.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove fuel pump. | Model 463 with engine 176, 177 as of model year 2019 | AR47.20-P-5710XGA |
| Model 463 with engine 264 as of model year 2019 | AR47.20-P-5710XGF | ||
| Model 463 with engine 656 as of model year 2019 | AR47.20-P-5710XGE | ||

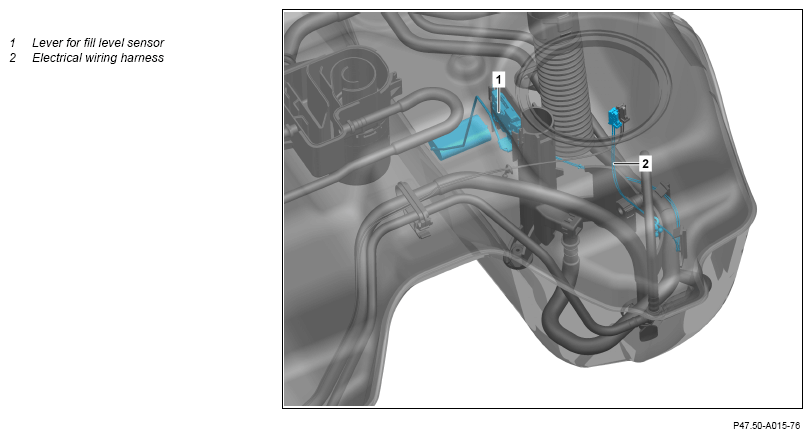

| 2 | Expose the electrical wiring harness (2). > | ||
| 3 | Unclip lever for fill level sensor (1) and remove. | ||
| 4 | Install in the reverse order. |
