Remove/Install Transfer Case Control Unit - AR28.19-P-1003GW
MODEL 463 as of model year 2013
/facelift 2012
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

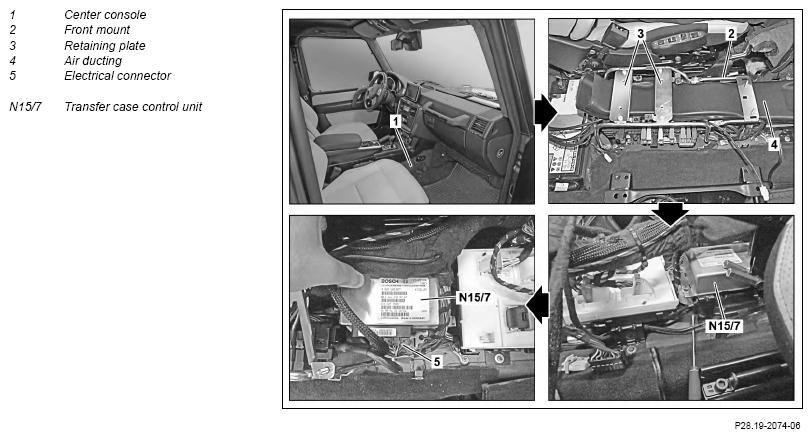

| 1 | Remove/install center console (1) | AR68.20-P-2000GW | |
| 2 | Remove front bracket (2) and retaining plates (3) | ||
| 3 | Pull air ducting (4) to rear and remove | ||
| 4 | Disconnect electrical connector (5) | ||
| 5 | Detach and remove transfer case control unit (N15/7) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out and erase the fault memory using Star Diagnosis | AD00.00-P-2000-04A |
