Remove/Install Fuel Level Sensor - AR47.50-P-0110MND

Model 213 With Engine 177, 264, 274, 276.8, 642, 654, 656

Model 238 With Engine 264, 274, 276.8, 642, 654, 656

Model 257 With Engine 264

Shown on model 213

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Suction off fuel vapors from vehicle interior.	Vehicles with spark-ignition engine
			WS47.00-P-0039B
2	Remove fuel pump.	Model 213, 238 with engine 656	AR47.20-P-5710OIB
		Model 213 with engine 177, 264, 274, 276.8, 642, 654 Model 238 with engine 264, 274, 276.8, 642, 654 Model 257 with engine 264	AR47.20-P-5710OLC

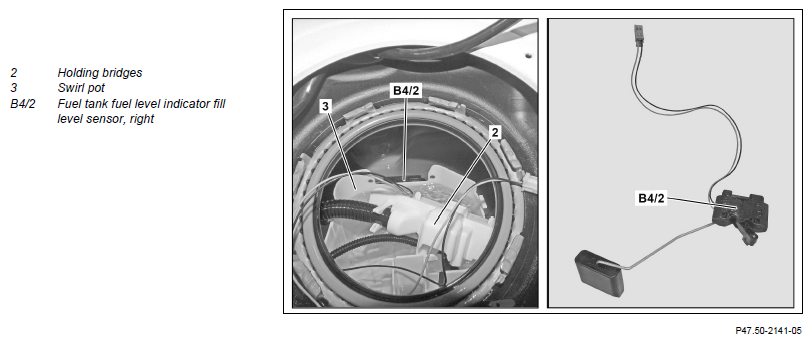

3	Unclip holding clamp (2) at swirl pot (3) and place with clipped in lines to one side.	Model 213 with engine 177, 274, 276.8, 642, 654, 656 Model 238 with engine 274, 276.8, 642, 654, 656
4	Unclip right fuel tank fuel level indicator fill level sensor (B4/2) at swirl pot (3) and remove.
5	Install in the reverse order.
