Remove/Install Triangular Window - AR67.30-P-2560LWO
Model 238.3

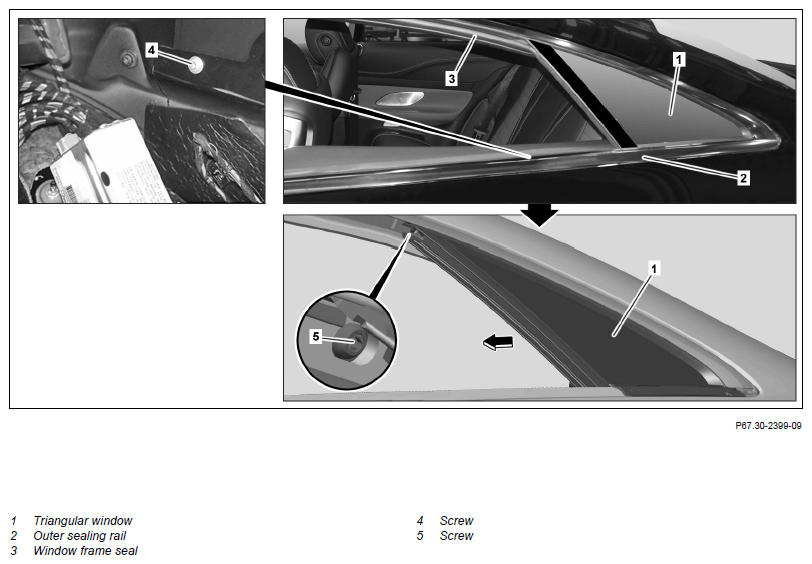

Shown on left side of vehicle
| Remove/install | |||
| 1 | Lower side window in rear | ||
| 2 | Remove lower trim in rear | AR68.30-P-4784LWO | |
| 3 | Remove outer sealing rail (2) | Fig 1 | |
| 4 | Remove window sealing frame (3) | Do not kink window sealing frame (3). Otherwise it may be damaged. |
|
| 5 | Unscrew bolt (4) | ||
| 6 | Unscrew screw (5) and remove triangular window (1) in the direction of the arrow | ||
| 7 | Install in the reverse order |
