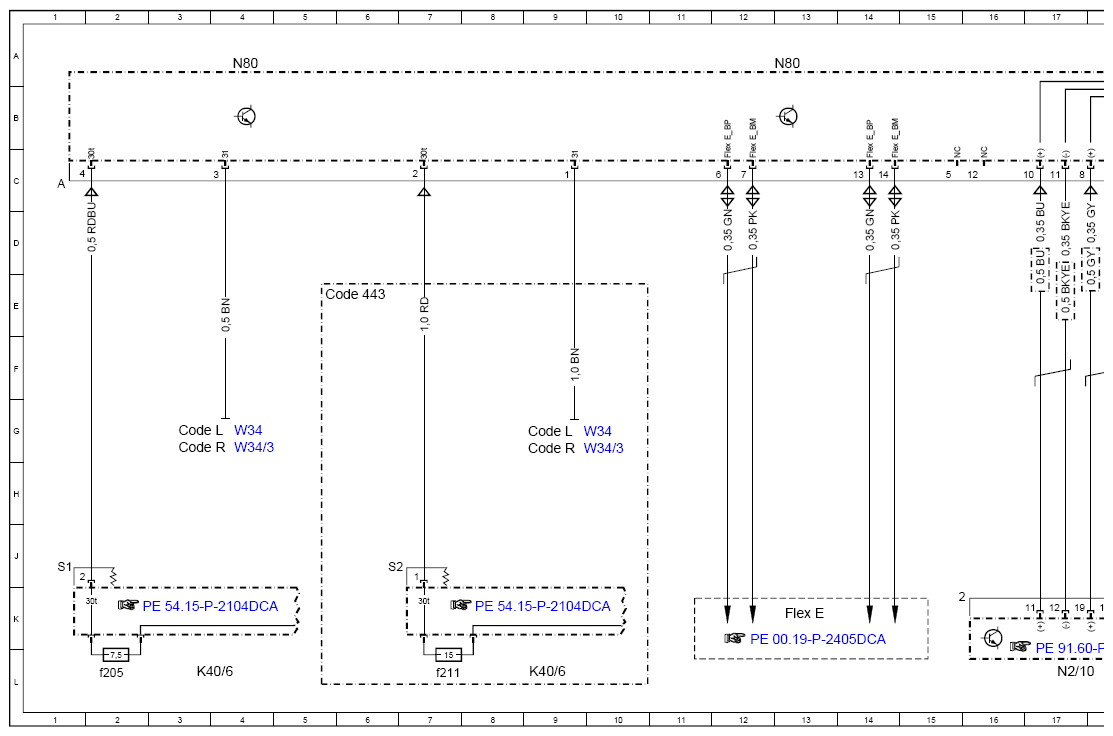

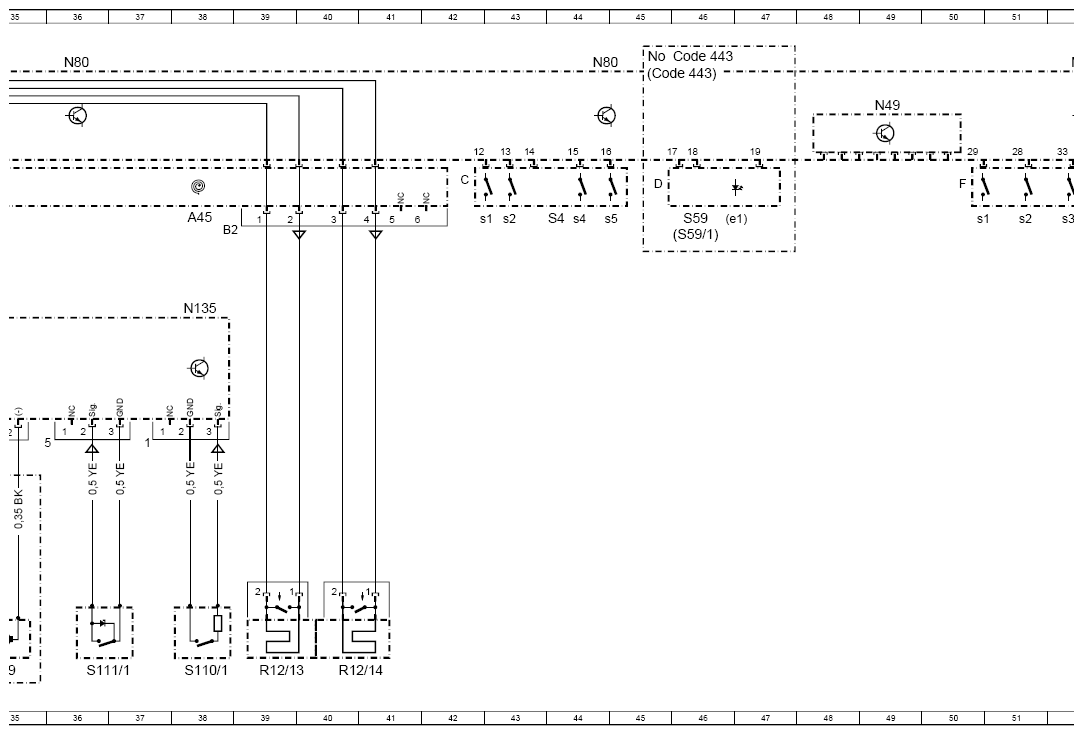

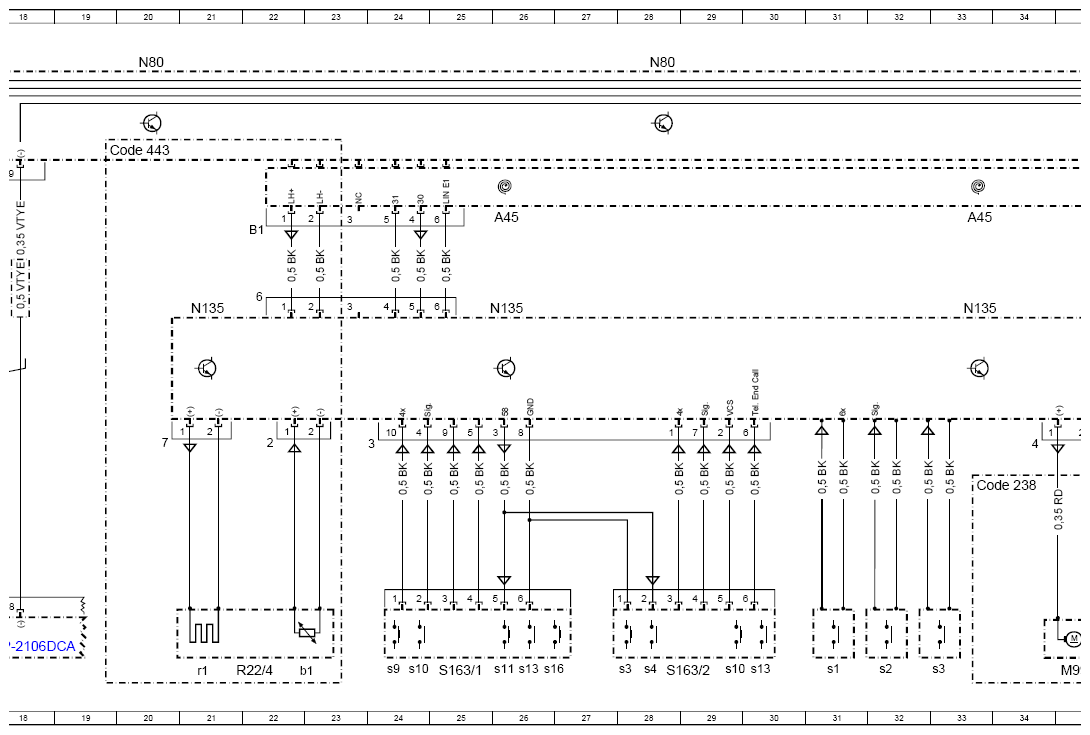

Wiring Diagram For Steering Column Module Control Unit - PE46.10-P-2101-97DCA
Model 238 up to model year 2021 Control unit N80
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A45 | Fanfare horns and airbag clock spring contact | 26D |
| A45 | Fanfare horns and airbag clock spring contact | 33D |
| A45 | Fanfare horns and airbag clock spring contact | 38D |
| Code 238 | Active Lane Keeping Assist | 33H |
| Code 443 | Steering wheel heater | 19C |
| Code 443 | Steering wheel heater | 45A |
| Code 443 | Steering wheel heater | 5E |
| Code 443 | Steering wheel heater | 46A |
| Code 460 | Canada version | 54A |
| Code 494 | USA version | 54A |
| Code L | LEFT-HAND DRIVE | 3G |
| Code L | LEFT-HAND DRIVE | 9G |
| Code R | RIGHT-HAND DRIVE | 3G |
| Code R | RIGHT-HAND DRIVE | 9G |
| Flex E | Chassis FlexRay | 13K |
| K40/6 | Driver-side fuse and relay module | 9L |
| K40/6 | Driver-side fuse and relay module | 3L |
| K40/6f205 | Fuse 205 | 2L |
| K40/6f211 | Fuse 211 | 7L |
| LIN E1 | Steering LIN | 25C |
| M99 | Steering wheel vibration motor | 35L |
| N135 | Steering wheel electronics | 26E |
| N135 | Steering wheel electronics | 21E |
| N135 | Steering wheel electronics | 33E |
| N135 | Steering wheel electronics | 38E |
| N135s1 | Left upper horn button | 31L |
| N135s2 | Right upper horn button | 32L |
| N135s3 | Left lower horn button | 33L |
| N2/10 | Supplemental restraint system control unit | 17L |
| N49 | Steering wheel angle sensor | 49B |
| N80 | Steering column module control unit | 4A |
| N80 | Steering column module control unit | 20A |
| N80 | Steering column module control unit | 36A |
| N80 | Steering column module control unit | 44A |
| N80 | Steering column module control unit | 52A |
| N80 | Steering column module control unit | 13A |
| N80 | Steering column module control unit | 28A |
| R12/13 | Driver airbag squib 1 | 39L |
| R12/14 | Driver airbag squib 2 | 40L |
| R22/4 | Steering wheel heater | 22L |
| R22/4b1 | Heating element temperature sensor | 22L |
| R22/4r1 | Steering wheel heater heating element | 21L |
| S110/1 | Steering wheel downshift button | 38L |
| S111/1 | Steering wheel upshift button | 36L |
| S16/13 | DIRECT SELECT lever | 57D |
| S163/1 | Instrument cluster multifunction steering wheel button group | 25L |
| S163/1s10 | Instrument cluster finger navigation pad | 24L |
| S163/1s11 | Volume control button | 26L |
| S163/1s9 | Mute function button | 24L |
| S163/2 | Head unit multifunction steering wheel button group | 28L |
| S163/2s10 | Head unit finger navigation pad | 29L |
| S163/2s13 | "Back" button | 30L |
| S163/2s13 | "Back" button | 26L |
| S163/2s16 | Volume control switch | 26L |
| S163/2s3 | Accept/terminate phone call button | 28L |
| S163/2s4 | Voice control system ON button | 28L |
| S4 | Combination switch | 44D |
| S40/4 | Cruise control lever | 52D |
| S40/4r1 | DISTRONIC control | 56D |
| S40/4s1 | Resume from memory switch | 50D |
| S40/4s2 | Decelerate and set switch | 51D |
| S40/4s3 | Accelerate and set switch | 52D |
| S40/4s4 | OFF switch | 53D |
| S40/4s6 | Variable speed limiter switch | 55D |
| S40/4v1 | Variable speed limiter light-emitting diode | 55D |
| S4s1 | Turn signal lamps switch | 42D |
| S4s2 | Headlamp flasher/high beam switch | 43D |
| S4s4 | Windshield washer system switch | 44D |
| S4s5 | Wipe switch | 44D |
| S59 | Steering column adjustment switch | 46D |
| S59/1 | Steering column adjustment and steering wheel heater switch | 46D |
| S59/1e1 | Steering wheel heater indicator lamp | 46D |
| W34 | Left footwell ground point | 4G |
| W34 | Left footwell ground point | 96 |
| W34/3 | Right footwell ground point | 4G |
| W34/3 | Right footwell ground point | 9G |
