Open/Close Fuel Service Cover - AR47.10-P-4100-04OIB
Model 257
FUEL TANK
| Number | Designation | Model 257 | |
|---|---|---|---|
| BA47.10-P-1004-01P | Screw/bolt, maintenance cover to body | Nm | 3 |
Open service cover
- Fold back or remove the insulation mat.

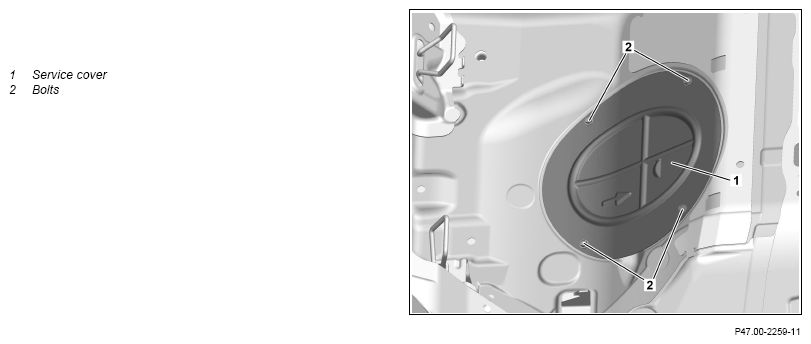

- Remove bolts (2) and remove service cover (1) from body.
Close service cover
- Install service cover (1) and screw in bolts (2)
.
Observe maximum bolt length of 10 mm.
When using longer screw/bolts there is the danger of leaks at the fuel tank and injury to persons or damage to equipment and the environment.
- Fold back or install insulation mat.
