Remove/Install Drive Unit Control Unit - AR27.19-P-0050FR
Model 257 with engine 256
with code M016 (Uprated engine)

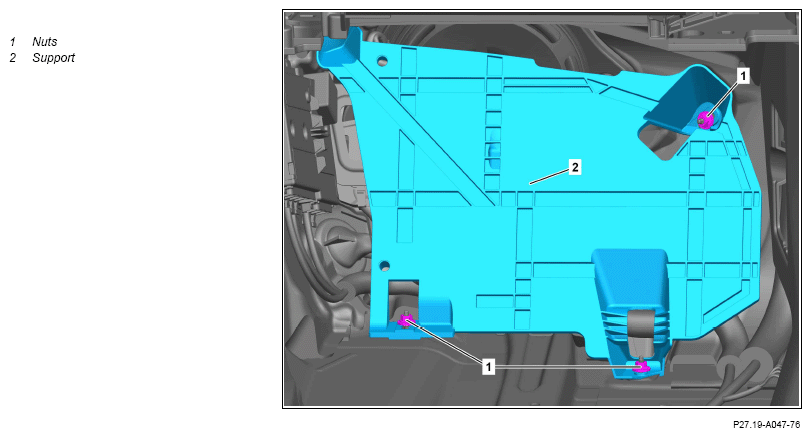

| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003FR | |
| 2 | Remove floor covering at front on front passenger side. | AR68.80-P-0008FR | |
| 3 | Remove nuts (1). | ||
| 4 | Remove bracing (2). | ||

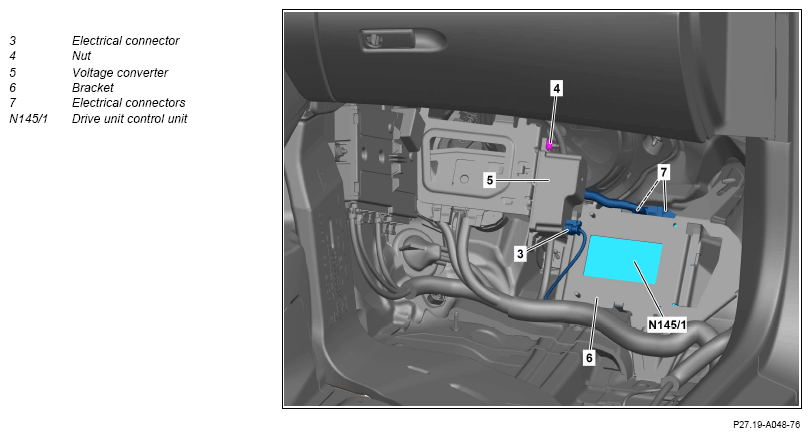

| 5 | Release and disconnect electrical connection (3). | ||
| 6 | Remove nut (4). | ||
| 7 | Remove voltage converter (5). | ||
| 8 | Fold down holder (6) until electrical connectors (7) are accessible. | ||
| 9 | Release and disconnect electrical connectors (7). | ||
| 10 | Remove Drive Unit control unit (N145/1). | ||
| 11 | Install in the reverse order. | ||
| 12 | Commission Drive Unit control unit (N145/1). | ||
| AD00.00-P-2000-06FR | |||
