Remove/Install Fuel Tank - AR47.10-P-4100MSA

Model 213, 238, 257, 290 with engine 256.9

Model 257 with engine 264

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting	Always wear protective gloves when working	AS00.00-Z-0017-01A
	body parts on sharp vehicle parts	on or near sharp and non-deburred vehicle parts. Deburr repair panels.
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Empty fuel tank (1) with fuel pump.	Model 213, 238, 257, 290 with engine 256.9 If fuel pump is intact.	AR47.10-P-4001MSA
1.2	Empty fuel tank (1) using fuel transfer pump.	Model 213, 238, 257, 290 with engine 256.9 With defective fuel pump.	AR47.10-P-4000MSA
1.3	Empty the fuel tank (1).	In the case of a defective and intact fuel pump Model 257 with engine 264	AR47.10-P-4001OLC
2	Release and disconnect electrical connector o fuel pump.	Where fuel tank (1) is emptied using fuel transfer pump.
		Model 213, 238, 257, 290 with engine 256.9	AR47.20-P-5710MSA
		Model 257 with engine 264	AR47.20-P-5710OLC
3	Remove rear axle.	Model 238 with engine 256.9	AR35.10-P-0010LWO
		Model 290 with engine 256.9	AR35.10-P-0010FRX
		Model 213 (except 213.088/089/288/289) with engine 256.9	AR35.10-P-0010LWE
		Model 257 with engine 256.9, 264	AR35.10-P-0010FR
4	Remove propeller shaft.	Model 290 with engine 256.9	AR41.10-P-0050MNI
		Model 213, 238 with engine 256.9	AR41.10-P-0050LW
		Model 257 with engine 256.9, 264	AR41.10-P-0050MSA
5	Remove the right rear fender liner.	Model 213, 238 with engine 256.9	AR88.10-P-1300LWE
		Model 257, 290 with engine 256.9, 264	AR88.10-P-1302FR
6	Remove tank filler recess.	Model 213, 238 with engine 256.9	AR88.60-P-2001LWE
		Model 257, 290 with engine 256.9, 264	AR88.60-P-2001FR
7	Remove screw (9).	Screw/bolt, filler neck bracket to body	*BA47.10-P-1003-01P

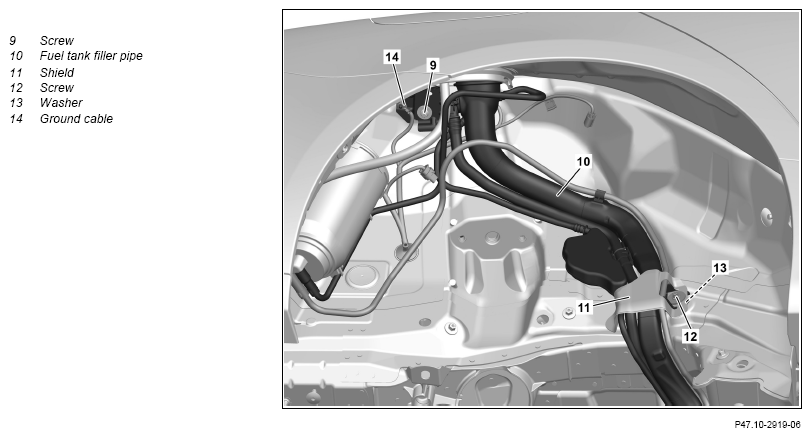

8	Unscrew screw (12); remove washer (13) and heat shield (11).	Insert pulley (13) between fuel tank filler pipe (10) and body.
		Screw/bolt, filler pipe to body	*BA47.10-P-1002-01P
9	Remove nut and remove ground line (14).	M6X1	*BA00.10-P-1002-04A
10	Remove hose from activated charcoal	Model 290 with engine 256.9	AR47.30-P-8212MNI
	canister.	Model 213, 238, 257 with engine 256.9	AR47.30-P-8212MSA
		Model 257 with engine 264	AR47.30-P-8212MRD
11	Seal openings using protective cover.	Set of protective caps	Fig 1
12	Clean fuel lines in the area of the separating points (2).	Assembly cleaner	*BR00.45-Z-1028-04A
13	Release and disconnect fuel lines from separating points (2), seal openings with,	Record plug	Fig 2
	suitable stop plugs, and collect escaping fuel in a suitable container.
14	Support fuel tank (1).
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
15	Remove cap from heat shield (3).

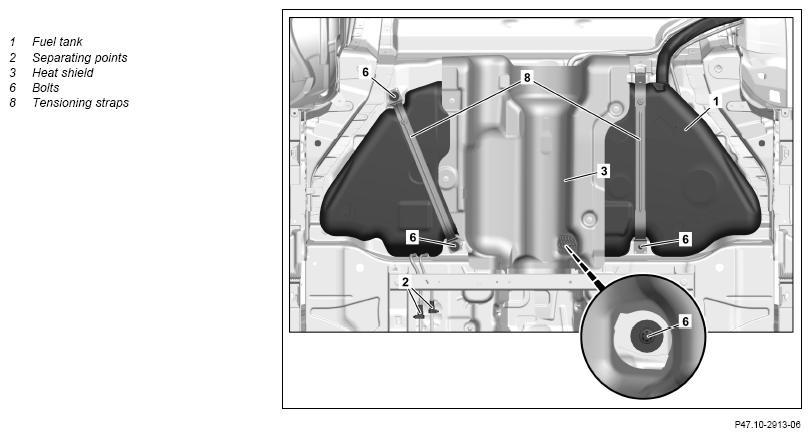

16	Remove screws (6) and remove tensioning straps (8).	Screw/bolt, fuel tank/tensioning strap to vehicle floor	*BA47.10-P-1001-01P
17	Lower fuel tank (1) slowly and remove.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate	Aid of helper required.	WS26.00-P-3309B
18	Remove right fill level sensor.	When replacing the fuel tank (1).
		Model 213, 238, 257, 290 with engine 256.9	AR47.50-P-0110MSA
		Model 257 with engine 264	AR47.50-P-0110MND
19	Remove purge line from fuel tank (1).	When replacing the fuel tank (1).
20	Remove heat shield (3) from fuel tank (1).	When replacing the fuel tank (1).
21	Install in the reverse order.
22	Read out and delete fault memory.
		Model 238 with engine 256.9	AD00.00-P-2000-06LWO
		Model 213 with engine 256.9	AD00.00-P-2000-04B
		Model 257 with engine 264 Model 257, 290 with engine 256.9	AD00.00-P-2000-06FR
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
23	Perform an engine test run; when doing so, check the engine for proper operation and the fuel system for leaks.
