Remove/Install Integrated Starter Alternator - AR15.40-P-0003MSA
Engine 256.9 in model 213, 238, 257, 290
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Drain coolant from low-temperature circuit. | AR09.41-P-6834MSA | |
| 2 | Remove transmission. | AR27.10-P-0500MSA | |

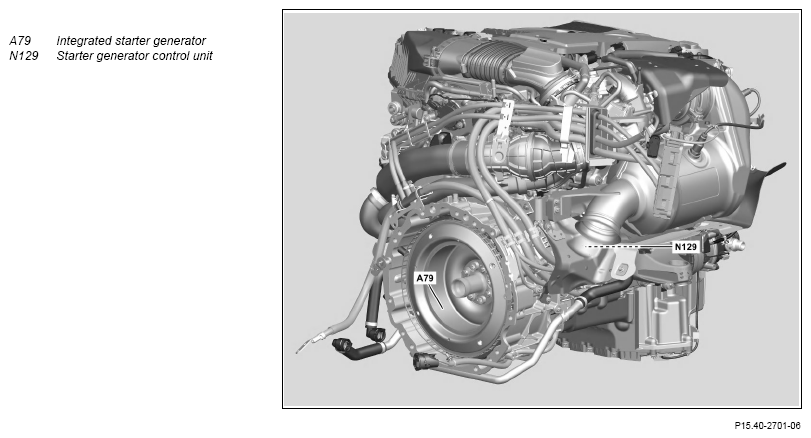

| 3 | Remove starter-alternator control unit (N129). | AR15.40-P-0004MSA | |

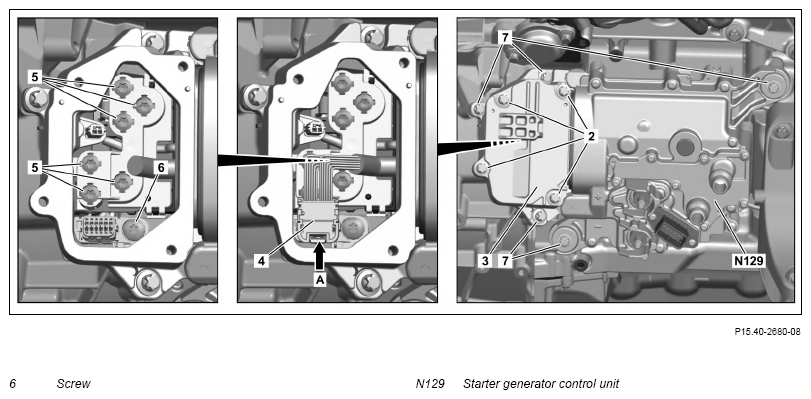

| 4 | Remove screw (6) and guide sensor connector of integrated starter-alternator (A79) through opening at timing case. | multimedia:A supplement to the article is available. Operation steps 4 to 22 are shown. |
|

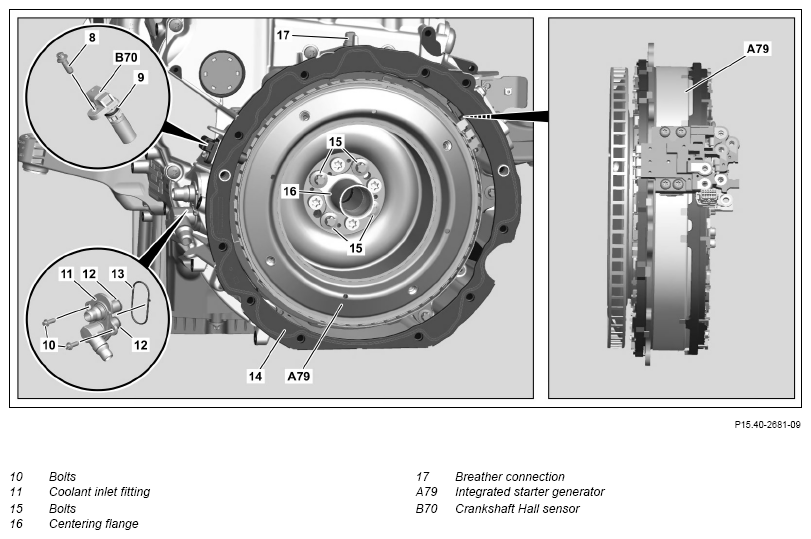

| 5 | Remove screws (15) in reverse order to tightening procedure and remove centering flange (16). | Tightening procedure of integrated starter alternator | AR15.40-P-0003-01MRT |
| Fig 4 | |||
| 6 | Remove crankshaft Hall sensor (B70). | AR15.12-P-2136MSA | |
| 7 | Remove screws (10) and remove coolant inlet fitting (11). | ||
| 8 | Remove breather connection (17). | ||
| 9 | Turn engine in direction of engine rotation to TDC marking (ignition TDC) of cylinder 1. | Engine damage will occur otherwise. |
|
| Fig 4 | |||
| 10 | Install assembly tool for removal of integrated starter generator (A79). | AR15.40-P-0003-05MRT | |
| Service Information: Parts identification of mounting plate for removal of integrated starter alternator in XENTRY Portal Parts Information | SI15.40-P-0012A | ||
Do not remove assembly tool in disassembled status from integrated starter alternator (A79). Integrated starter alternator (A79) will otherwise be damaged. |
|||
| Fig 4 | |||
| 11 | Install support fixture. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| Fig 2 | |||

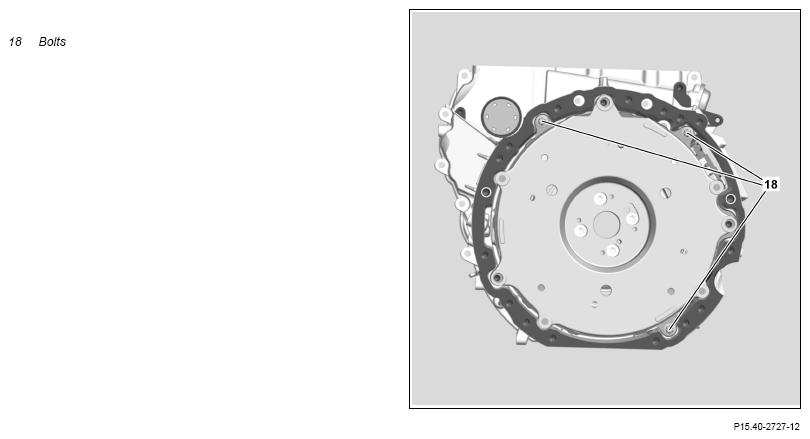

| 12 | Remove screws (18). | ||
| 13 | Remove integrated starter alternator (A79). | Do not damage sensor connector of integrated starter alternator (A79). The function of the integrated starter alternator (A79) is otherwise not ensured. Integrated starter alternator (A79) must not come into contact with fluids. The function of the integrated starter alternator (A79) is otherwise not ensured. |
|
| Install | |||
| 14 | Install integrated starter alternator (A79). | During insertion of integrated starter alternator (A79), ensure that sensor connector of integrated starter alternator (A79) is not damaged. The function of the integrated starter alternator (A79) is otherwise not ensured. |
|
| 15 | Tighten screws (18). | *BA15.40-P-1001-02MRT | |
| 16 | Remove support fixture. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| Fig 2 | |||
| 17 | Remove assembly tool for removal of integrated starter alternator (A79). | AR15.40-P-0003-05MRT | |
| *BA15.40-P-1003-02MRT | |||
| *BA15.40-P-1001-02MRT | |||
| Fig 4 | |||
| Measure | |||
| 18 | Perform coil resistance measurement. | AR15.40-P-0003-04MRT | |
| Measurement of phase resistances | *BE15.40-P-1002-06MRT | ||
| Install | |||
| 19 | Guide sensor connector of integrated starter alternator (A79) through opening at timing case and install with screw (6) at timing case. | *BA15.40-P-1007-02MRT | |
| 20 | Install centering flange (16). | Tightening procedure of integrated starter alternator Aid of helper required. |
AR15.40-P-0003-01MRT |
| *BA15.40-P-1003-02MRT | |||
| *BA15.40-P-1002-02MRT | |||
| Fig 4 | |||
| 21 | Measure air gap between stator and rotor. | AR15.40-P-0003-03MRT | |
| Clearance measurement | *BE15.40-P-1001-06MRT | ||
If there are problems, ↔ Replace integrated starter alternator (A79). |
Fig 3 | ||
| 22 | Install starter-alternator control unit (N129). | AR15.40-P-0004MSA | |
| 23 | Install crankshaft Hall sensor (B70). | AR15.12-P-2136MSA | |
| 24 | Install coolant inlet fitting (11). | *BA15.40-P-1006-02MRT | |
| 25 | Install breather connection (17). | ||
| 26 | Install transmission. | AR27.10-P-0500MSA | |
| 27 | Add low-temperature circuit coolant. | AR09.41-P-6834MSA | |
| 28 | Perform commissioning of starter-alternator control unit (N129). | When replacing integrated starter alternator (A79). | |
| Engine 256.9 in model 213 | AD00.00-P-2000-04B | ||
| Engine 256.9 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 257, 290 | AD00.00-P-2000-06FR | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 29 | Carry out engine test run and check engine for proper leak tightness and leak tightness. | ||
| 30 | Install lower engine compartment lining. | Engine 256.9 in model 213, 238 | AR61.20-P-1105LWE |
| Engine 256.9 in model 290 | AR61.20-P-1105FRX | ||
| Engine 256.9 in model 257 | AR61.20-P-1105FR |
TEST SPECIFICATIONS OF INTEGRATED STARTER ALTERNATOR
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BE15.40-P-1001-06MRT | Gap between stator and rotor | mm | 0, 9 |
TEST SPECIFICATIONS OF INTEGRATED STARTER ALTERNATOR
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BE15.40-P-1002-06MRT | Measurement of phase resistances | Resistances of phases U-V, V-W, W-U | mΩ | 9, 1 ±0, 3 |
| Resistances of phases X-Y, Y-Z, Z-X | mΩ | 8, 7 ±0, 3 | ||
| For picture, see | AR15.40-P-0003-04MRT | |||
STARTER-ALTERNATOR
| Number | Designation | Engine 256 | ||
|---|---|---|---|---|
| BA15.40-P-1001-02MRT | Bolt, stator housing to timing case | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 60 | ||
STARTER-ALTERNATOR
| Number | Designation | Engine 256 | ||
|---|---|---|---|---|
| BA15.40-P-1002-02MRT | Bolt, centering flange to crankshaft | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 90 | ||
STARTER-ALTERNATOR
| Number | Designation | Engine 256 | ||
|---|---|---|---|---|
| BA15.40-P-1003-02MRT | Bolt, integrated starter alternator to crankshaft | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 90 | ||
STARTER-ALTERNATOR
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA15.40-P-1006-02MRT | Bolt, coolant entry fittings to timing case | Nm | 8 |
STARTER-ALTERNATOR
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA15.40-P-1007-02MRT | Bolt, sensor connector to timing case | Nm | 8 |
