Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136MSA
Engine 256.9 in model 213, 238, 257, 290
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove center and rear lower engine compartment lining. | Engine 256.9 in model 213, 238 | AR61.20-P-1105LWE |
| Engine 256.9 in model 290 | AR61.20-P-1105FRX | ||
| Engine 256.9 in model 257 | AR61.20-P-1105FR | ||
| 2 | Remove left bracket of 48 V wiring harness from transmission and place to one side. | *BA00.10-P-1002-04A | |

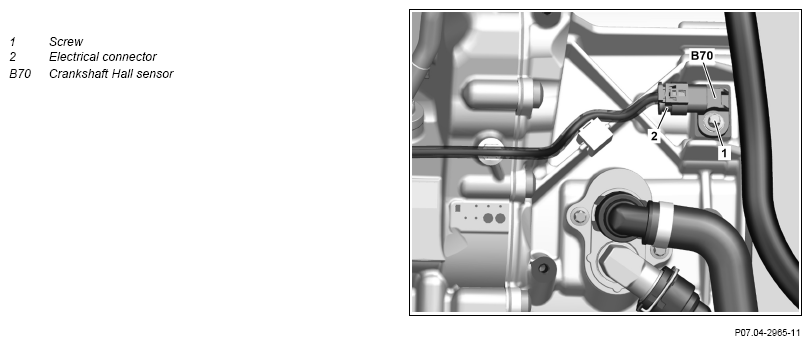

| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Remove screw (1). | *BA15.10-P-1001-03I | |
| 5 | Remove crankshaft Hall sensor (B70). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Read out and delete fault memory. | ||
| Engine 256.9 in model 213 | AD00.00-P-2000-04B | ||
| Engine 256.9 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 257, 290 | AD00.00-P-2000-06FR | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
POSITION SENSOR
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA15.10-P-1001-03I | Bolt, position sensor for crankshaft to crankcase/oil pan | Nm | 7 |
