Remove/Install Rear Door Triangular Window - AR67.30-P-2570FR

Model 257, 290

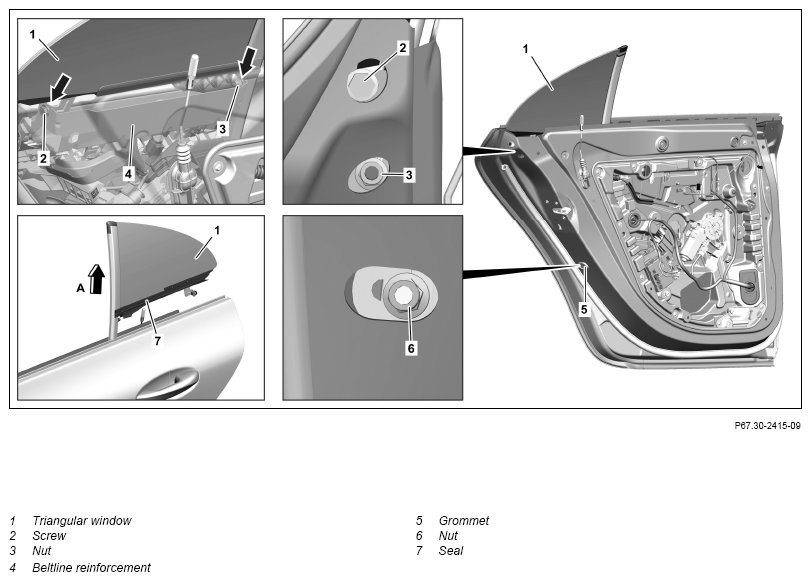

Shown on model 257 with removed rear door

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  from contusions to hands if window glass is not secured	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
	Remove
1	Remove rear door side window.		AR67.30-P-0006FR
2	Loosen screw (2).	Do not remove screw (2).
3	Loosen nut (3).	Do not unscrew the nut (3).
		Socket wrench	Fig 1
4	Remove grommet (5).
5	Slacken nut (6).	Do not remove nut (6).
6	Remove triangular window (1) in direction of arrow (A).
7	Unscrew nuts (3, 6).
8	Screw new nuts (3, 6) by a few turns onto thread at triangular window (1).
9	Remove screw (2) at triangular window (1) and attach to new triangular window (1).	When replacing triangular window (1).
	Install
10	Insert triangular window (1) into window channel and position.	When inserting triangular window (1), ensure seal (7) is not damaged. Otherwise noises from water entry can occur. Ensure that triangular window (1) is correctly seated in guides (arrows) of beltline reinforcement (4).
11	Attach nuts (3, 6) by hand.	Nuts (3, 6) are tightened after adjustment of triangular window (1).
12	Attach screw (2) by hand.	Screw (2) is tightened after adjustment of triangular window (1).
13	Install rear door side window.		AR67.30-P-0006FR
14	Adjust triangular window (1).		AR67.30-P-0016FR
15	Install grommet (5).

Fig 1: Identifying Socket Wrench (219 589 00 09 00)

Courtesy of MERCEDES-BENZ USA
