Overview Of System Components Of Electric Power Steering (ES) - GF46.35-P-9997FR
Model 257, 290 up to model year 2021

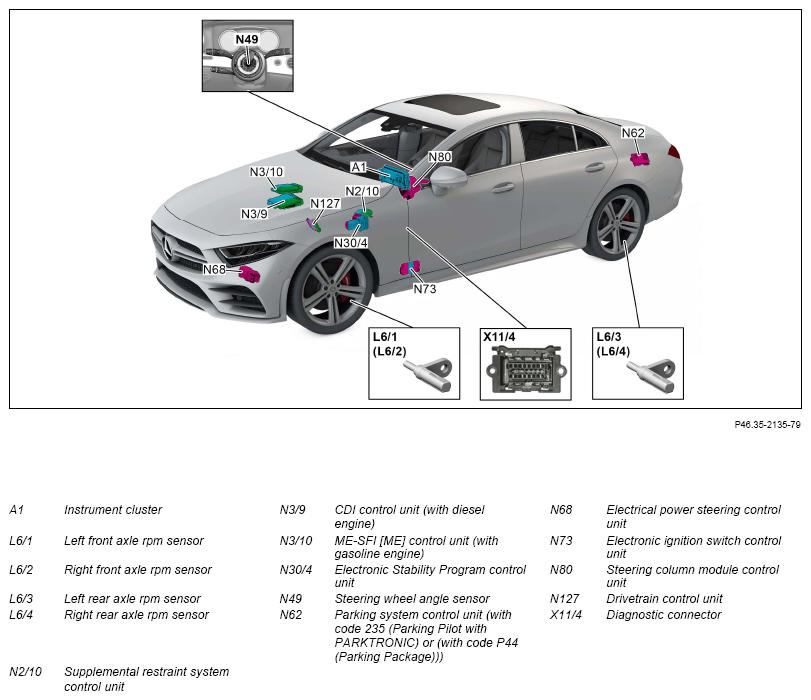

Overview of system components, shown on model 257

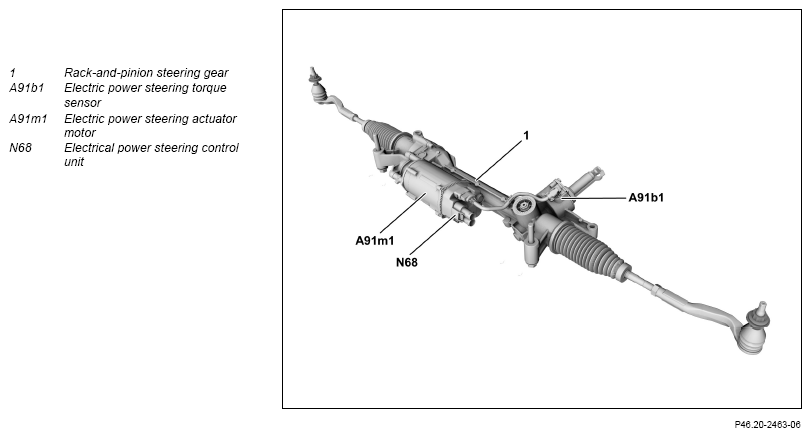

Illustration shows steering gear
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FR | |
| Component description for CDI control unit | Model 257 with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORD | |
| Model 257 with engine 656.9 up to model year 2021 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) up control | Model 257 with engine 256.9 unit to model year 2021 N3/10 | GF07.61-P-6000MRT | |
| Model 257 with engine 264.9 up to model year 2021 N3/10 | GF07.61-P-6000MRG | ||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| Parking system control unit, component description | Model 257 up to model year 2021 with code 235 (Active Parking Assist) Model 257 up to model year 2021 with code P44 (Parking package) N62 |
GF54.65-P-5004FR | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| Drivetrain control unit, component description | Model 257 with engine 256.9 up to model year 2021 N127 | GF54.21-P-2141LF | |
| Model 257 with engine 264.9 up to model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 257 with engine 654.9 up to model year 2021 N127 | GF54.21-P-2141ORD | ||
| Model 257 with engine 656.9 up to model year 2021 N127 | GF54.21-P-2141OIA | ||
| Contents, function description of electric power steering (ES) | GF46.35-P-0999FR |
