Wiring Diagram For Overhead Control Panel (OCP) Control Unit - PE54.21-P-2107-97XBA
Model 257, 290 up to model year 2021 Control unit N70
| Code: | Designation: | Position: |
|---|---|---|

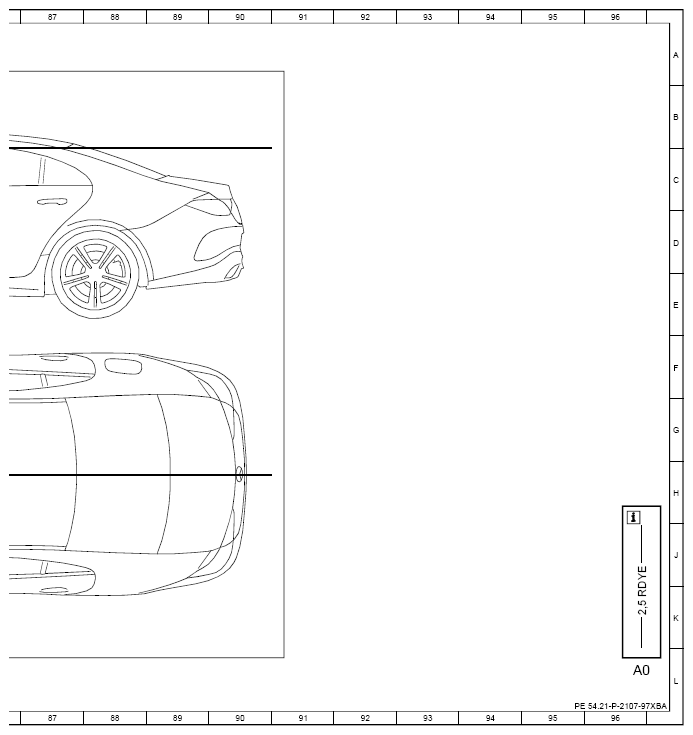

| A0 | Use of wiring diagrams | 96L |
| A67 | Inside rearview mirror | 64L |
| B39/4 | Rear window glass breakage sensor | 17L |
| B39/4x1 | Rear window glass breakage sensor electrical connector | 16K |
| CAN B | Interior CAN | 20K |
| Code 811 | Advanced sound system | 22F |
| Code 811 | Advanced sound system | 50C |
| Code 882 | Interior monitoring | 9F |
| Code 882 | Interior monitoring | 14F |
| Code 891 | Premium ambient lighting | 22F |
| Code 891 | Premium ambient lighting | 30A |
| Code 891 | Premium ambient lighting | 35A |
| Code 891 | Premium ambient lighting | 50D |
| Code F290 | Model series 290 | 14F |

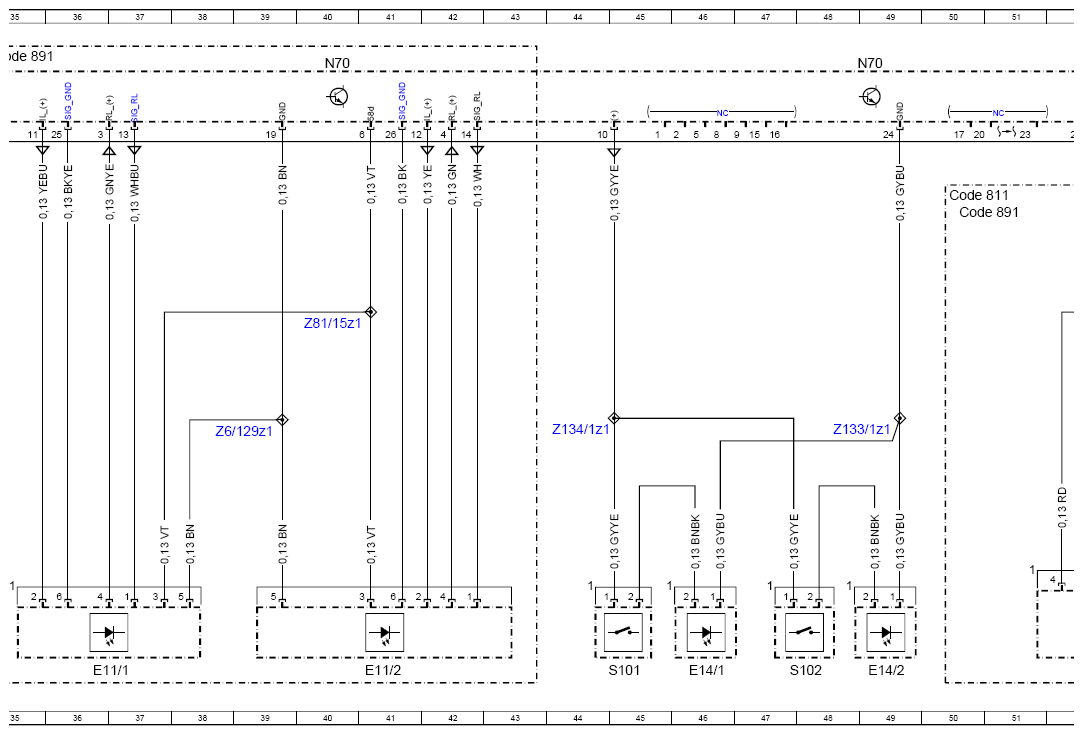

| E11/1 | Left rear dome lamp | 31L |
| E11/1 | Left rear dome lamp | 36L |
| E11/2 | Right rear dome lamp | 33L |
| E11/2 | Right rear dome lamp | 41L |
| E14/1 | Left sun visor mirror lamp | 46L |
| E14/2 | Right sun visor mirror lamp | 49L |
| E43/55 | Roof center midrange speaker ambiance illumination | 52L |
| E43/71 | Left center headliner midrange speaker ambiance illumination | 55L |
| E43/72 | Right center headliner midrange speaker ambiance illumination | 58L |
| F1/3 | Passenger-side A-pillar fuse box | 7L |
| F1/3f316 | Fuse 316 | 6L |
| F1/3f318 | Fuse 318 | 10L |

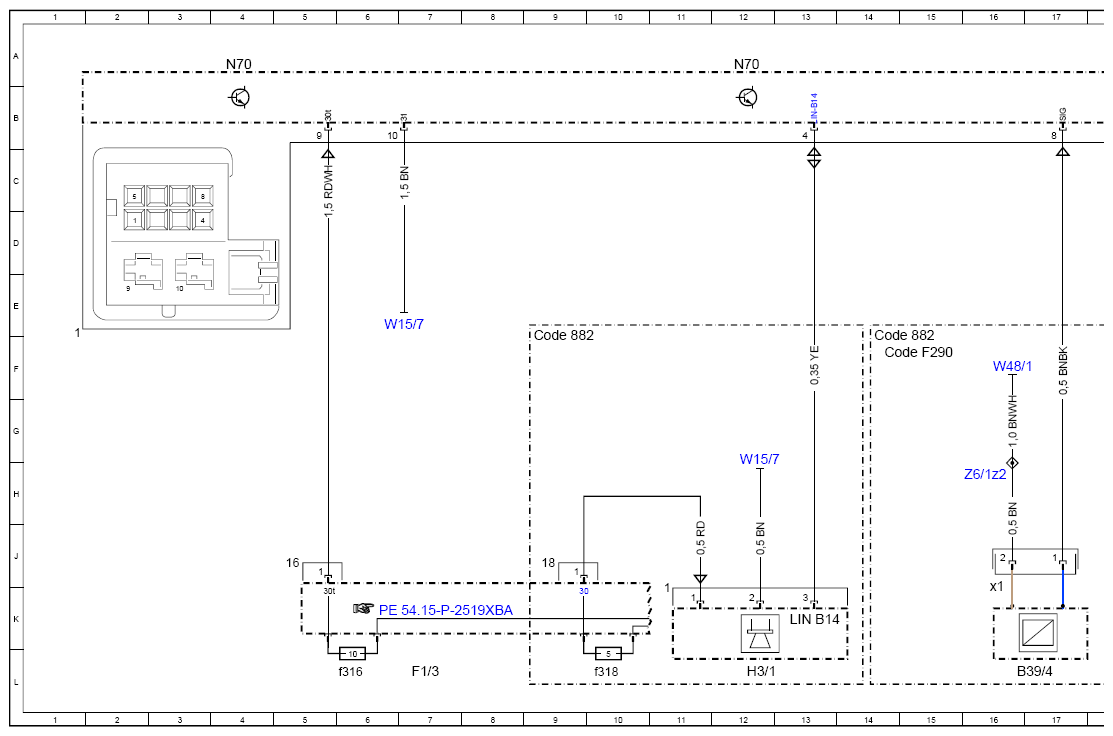

| H3/1 | Alarm siren | 12L |
| LIN B14 | Alarm system LIN | 13K |
| LIN B36 | Roof ambiance illumination LIN | 53K |
| LIN B36 | Roof ambiance illumination LIN | 24K |
| LIN B36 | Roof ambiance illumination LIN | 55K |
| LIN B36 | Roof ambiance illumination LIN | 58K |

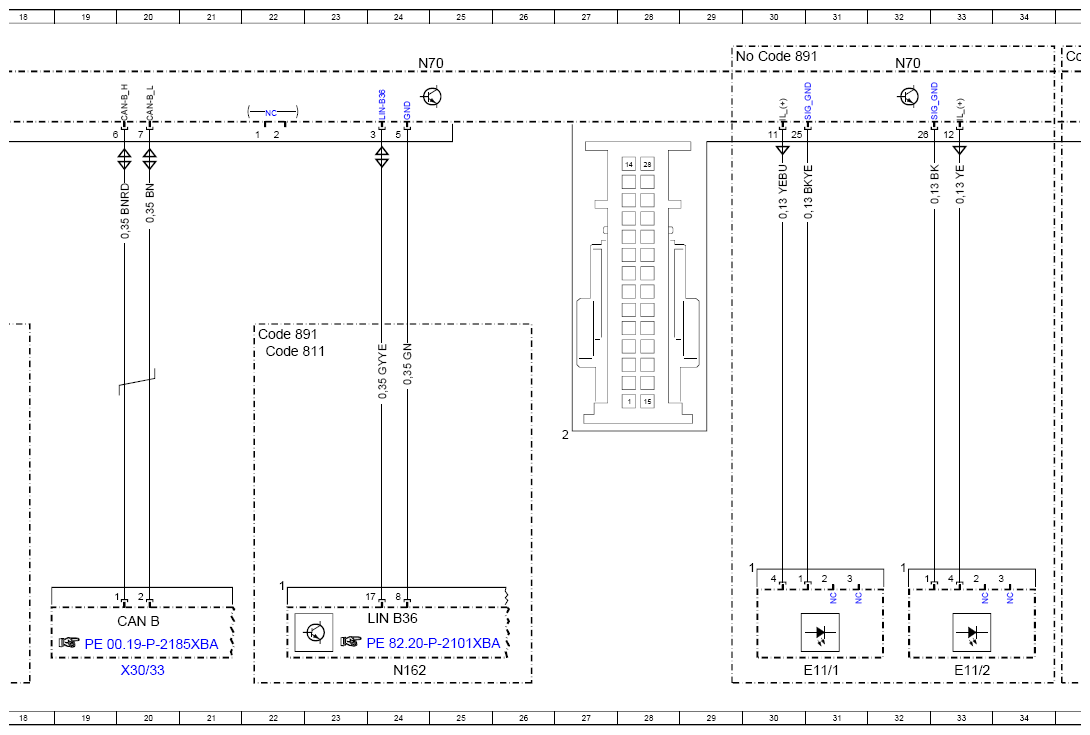

| N162 | Ambiance illumination control unit | 24L |

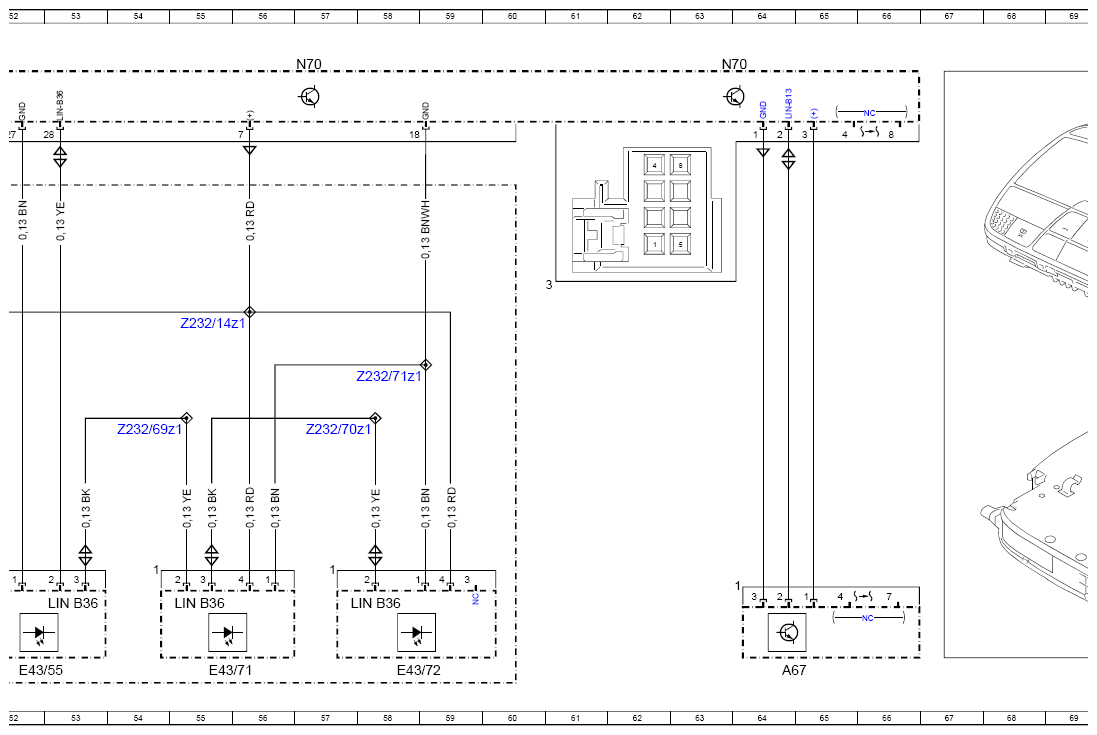

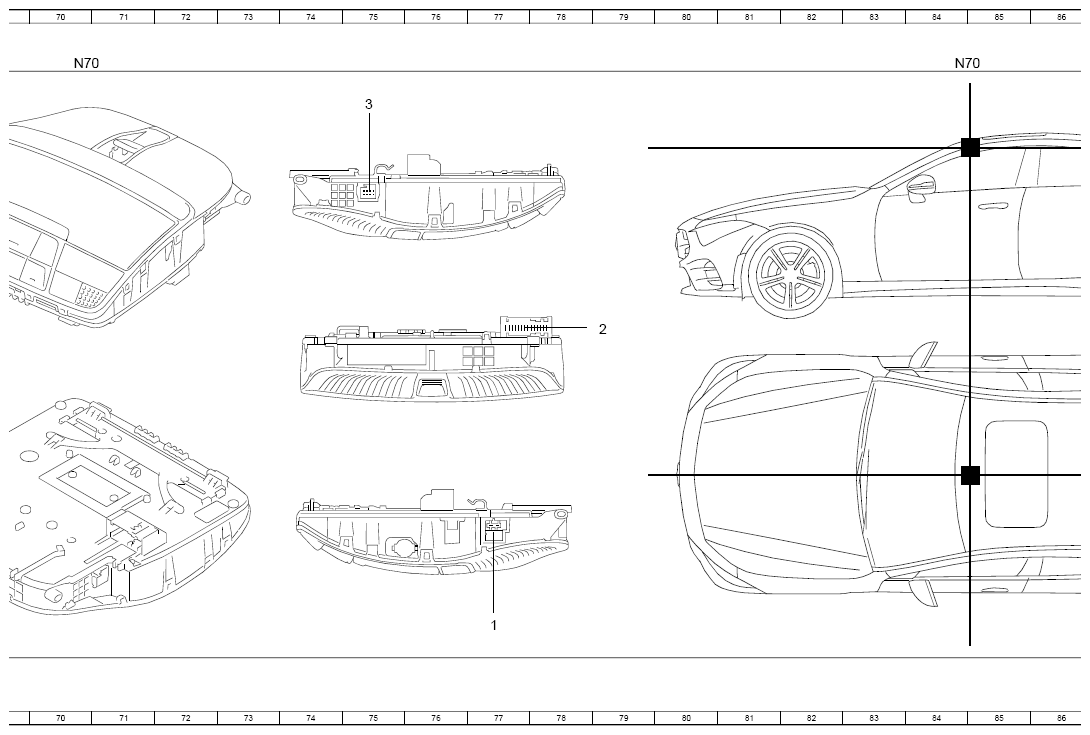

| N70 | Overhead control panel control unit | 4A |
| N70 | Overhead control panel control unit | 12A |
| N70 | Overhead control panel control unit | 24A |
| N70 | Overhead control panel control unit | 32A |
| N70 | Overhead control panel control unit | 40A |
| N70 | Overhead control panel control unit | 49A |
| N70 | Overhead control panel control unit | 57A |
| N70 | Overhead control panel control unit | 63A |
| N70 | Overhead control panel control unit | 70A |
| N70 | Overhead control panel control unit | 84A |
| S101 | Left front mirror lamp switch | 45L |
| S102 | Right front mirror lamp switch | 48L |
| W15/7 | Right front footwell ground point | 6E |
| W15/7 | Right front footwell ground point | 12H |
| W48/1 | Right rear roof frame ground point | 16F |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 20L |
| Z133/1z1 | Ground connection connector sleeve | 49G |
| Z134/1z1 | Voltage supply connector sleeve | 44G |
| Z232/14z1 | Voltage supply connector sleeve | 55E |
| Z232/69z1 | LIN B36 connector sleeve | 54G |
| Z232/70z1 | LIN B36 connector sleeve | 57G |
| Z232/71z1 | Ground connection connector sleeve | 58F |
| Z6/129z1 | Ground connection connector sleeve | 39G |
| Z6/1z2 | Ground connection connector sleeve | 16H |
| Z81/15z1 | Circuit 58d connector sleeve | 40E |
