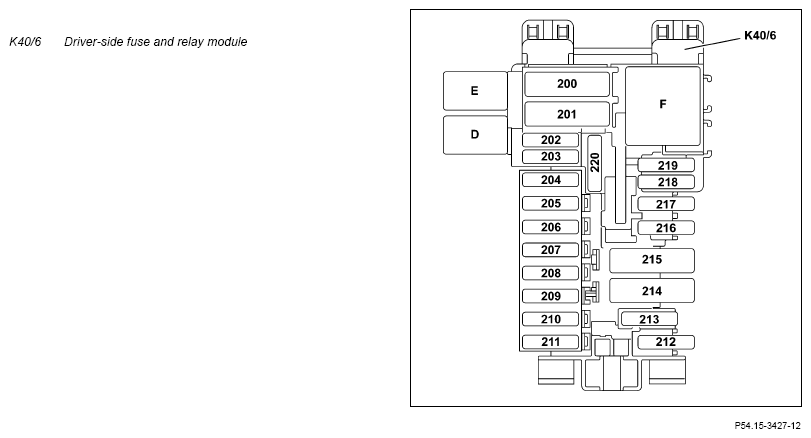

Assignment Of Driver-Side Fuse And Relay Module - GF54.15-P-1256-49FR
Model 257, 290
| Slot | Fuse Identification | Circuit | Wire Identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| 200 | Electrical fuse 200 (K40/6f200) | 30t | 4.0 RD | Front SAM control unit (N10/6) | 40 |
| 201 | Electrical fuse 201 (K40/6f201) | 30t | 4.0 RDWH | Front SAM control unit (N10/6) | 40 |
| 202 | Electrical fuse 202 (K40/6f202) | 30t | 0.5 RDBK | Engine 256: Starter-alternator control unit (N129) |
5 |
| 0.5 RDYE | Engine 264 with code B01 (48V technology): Starter alternator (M1/10) |
||||
| 203 | Electrical fuse 203 (K40/6f203) | 30t | 2.5 RD | LHD vehicles: Left front door control unit (N69/1) |
30 |
| Right-hand steering: Right front door control unit (N69/2) |
|||||
| 204 | Electrical fuse 204 (K40/6f204) | 30t | 0.5 RDGN | With code 498 (Japan version) or code 835 (Additional parts for South Korea vehicles): Dedicated Short-Range Communications control unit (A50/6) |
5 |
| 0.5 RD | With code 320 (Pre-installation of single CD drive): External CD drive (A2/132) |
||||
| 205 | Electrical fuse 205 (K40/6f205) | 30t | 0.5 RDBU | Steering column tube module control unit (N80) | 7, 5 |
| 206 | Electrical fuse 206 (K40/6f206) | 30t | 0.5 RDYE | With code 246 (Analog clock): Analog clock (A70/1) |
5 |
| With code 897 (Wireless mobile phone charging) or with code 899 (Multifunction telephony): USB port on center console at front (X115/5) |
|||||
| 207 | Electrical fuse 207 (K40/6f207) | - | - | Spare | - |
| 208 | Electrical fuse 208 (K40/6f208) | 30t | 0.5 RD | Audio/COMAND display (A40/8) | 7, 5 |
| With code 464 (Full display digital instrument cluster): Digital instrument cluster full display fan motor (M4/12) |
|||||
| 209 | Electrical fuse 209 (K40/6f209) | 30t | 0.5 RDWH | Upper control panel control unit (N72/1) Climate control operating unit (N58/1) | 5 |
| 210 | Electrical fuse 210 (K40/6f210) | 30t | 1.5 RDBK | Climate control control unit (N22/1) | 15 |
| 211 | Electrical fuse 211 (K40/6f211) | 30t | 1.0 RD | Steering column tube module control unit (N80) | 15 |
| 212 | Electrical fuse 212 (K40/6f212) | 30t | 0.5 RDOG | With code B24 (Remote control for stationary heater) or code 503 (Pre-installation for Remote Parking Pilot) and code 380 (Car telephony package) or code 899 (Multifunction telephony): Telephone and Active Parking Assist/stationary heater antenna changeover switch (A2/155) |
5 |
| 213 | Electrical fuse 213 (K40/6f213) | 30t | 4.0 RDGN | LHD vehicles: Left front reversible emergency tensioning retractor (A76) |
30 |
| 4.0 RDBK | Right-hand steering: Right front reversible emergency tensioning retractor (A76/1) |
||||
| 214 | Electrical fuse 214 (K40/6f214) | 30t | 2.5 RDBU | LHD vehicles: Left rear door control unit (N69/3) |
30 |
| 2.5 RDYE | Right-hand steering: Right rear door control unit (N69/4) |
||||
| 215...220 | Electrical fuse 215 (K40/6f215) - Electrical fuse 220 (K40/6f220) | - | - | Spare | - |
| Relay Identification | Designation |
|---|---|
| D | Not assigned |
| E | Not assigned |
| F | Backup relay (K40/6kF) |
