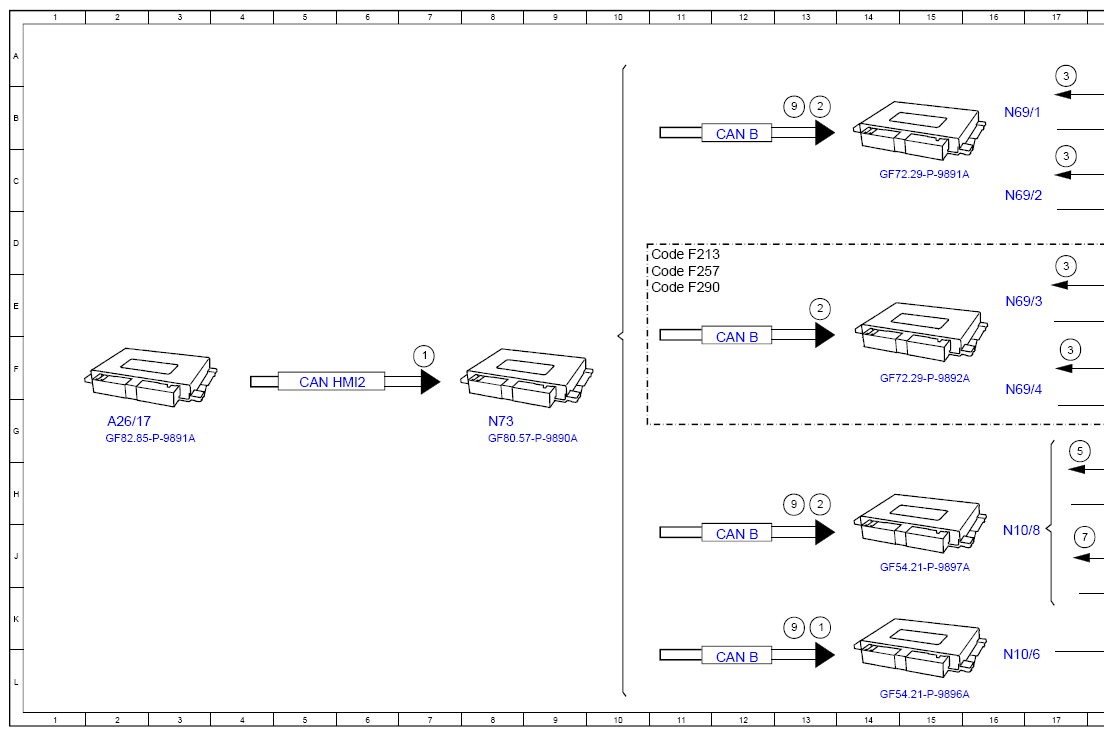

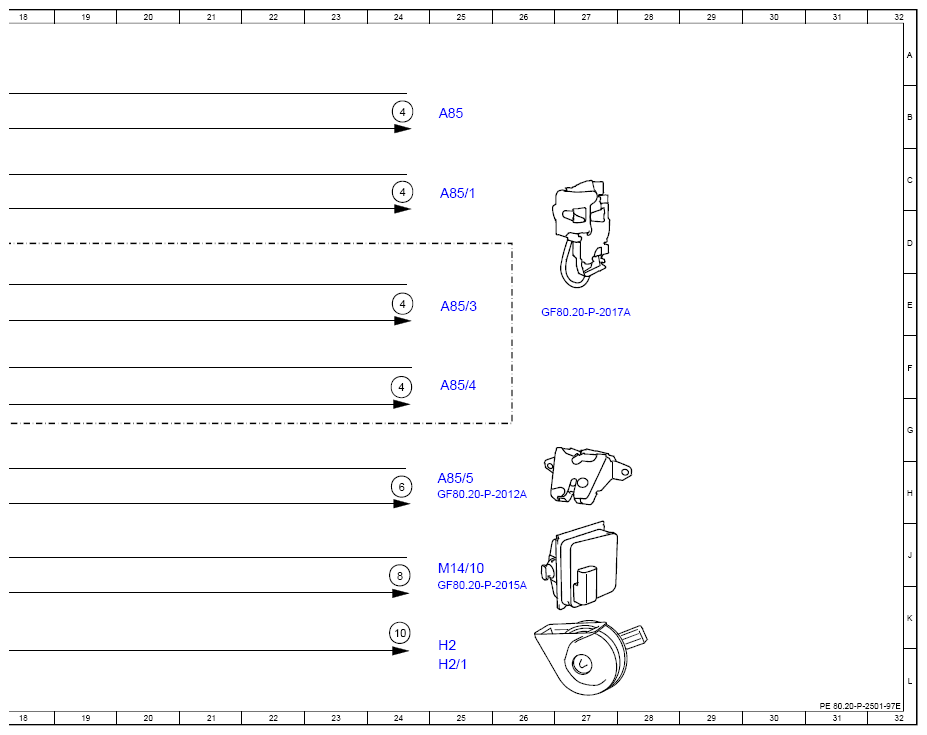

Function Schematic For Unlocking/Locking Vehicle Through Central Locking System - PE80.20-P-2501-97E
Model 213, 238, 257, 290 as of Model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Acoustic closing feedback, status | 13K |
| 1 | Acoustic closing feedback, status | 7F |
| 10 | Horn, Control | 24K |
| 2 | Unlock/lock central locking, request | 13B |
| 2 | Unlock/lock central locking, request | 13E |
| 2 | Unlock/lock central locking, request | 13H |
| 3 | Microswitch main button, status | 17B |
| 3 | Microswitch main button, status | 17C |
| 3 | Microswitch main button, status | 17D |
| 3 | Microswitch main button, status | 17F |
| 4 | Central locking motor, control | 24B |
| 4 | Central locking motor, control | 24E |
| 4 | Central locking motor, control | 24C |
| 4 | Central locking motor, control | 24F |
| 5 | Tailgate rotary latch switch, status | 17G |
| 6 | Trunk lid/tailgate lock, actuation Motor | 24H |
| 7 | Actuator central locking fuel cap, status | 17J |
| 8 | Actuator central locking tank cap, control | 24J |
| 9 | Flasher signal, request | 9B |
| 9 | Flasher signal, request | 13B |
| 9 | Flasher signal, request | 13K |
| A26/17 | Headunit | 2G |
| A85 | Left Front Door Lock | 25B |
| A85/1 | Right Front Door Lock | 25C |
| A85/3 | Left Rear Door Lock | 25E |
| A85/4 | Right Rear Door Lock | 25F |
| A85/5 | Trunk lid / tailgate lock | 25H |
| CAN B | Interior CAN | 12J |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 12B |
| CAN B | Interior CAN | 12L |
| CAN HMI2 | User interface CAN 2 | 5F |
| Code F213 | Model 213 | 11D |
| Code F257 | Model 257 | 11E |
| Code F290 | Model 290 | 11E |
| H2 | Left horn | 25L |
| H2/1 | Right horn | 25L |
| M14/10 | Actuator central locking fuel filler cap | 25J |
| N10/6 | Front SAM control unit | 16L |
| N10/8 | Rear control unit SAM | 16J |
| N69/1 | Left front door control unit | 16B |
| N69/2 | Right front door control unit | 16C |
| N69/3 | Left rear door control unit | 16E |
| N69/4 | Right rear door control unit | 16F |
| N73 | Electronic ignition lock control unit | 8G |
