Remove/Install Starter - AR15.30-P-7100MNA

Engine 177 in model 205

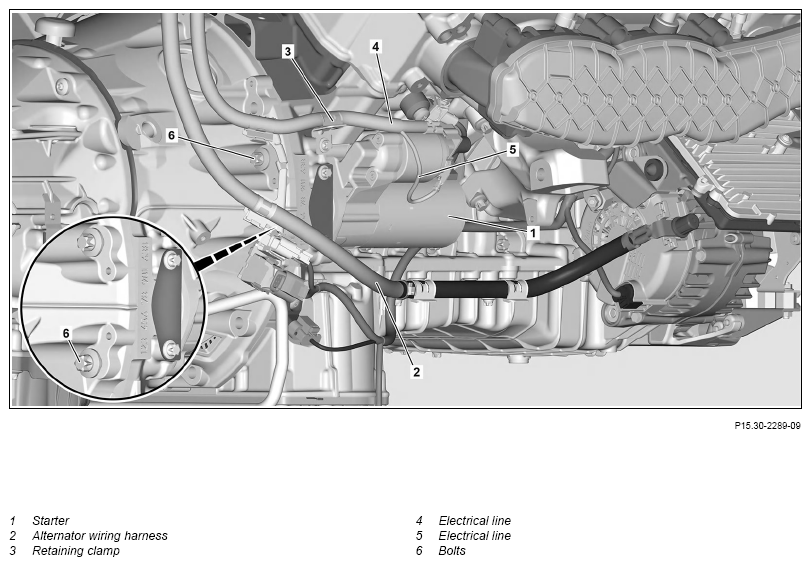

Fig 1: Starter Component Location - Model 205 W/ Engine 177

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach battery ground line		AR54.10-P-0003LW
2	Remove lower engine compartment paneling		AR61.20-P-1105LW
3	Unclip alternator wiring harness (2) on transmission
4	Detach retaining clamp (3)
5	Detach electrical lines (4, 5) from starter (1)		AR15.30-P-7100-03MNA
		Nut, connection for terminal designation 30	*BA15.30-P-1004-01T
		Nut, connection for terminal designation 50	*BA15.30-P-1003-01T
6	Remove screw/bolts (6)	Bolt, starter to crankcase and transmission	*BA15.30-P-1001-01T
7	Remove starter (1) from below
8	Install in the reverse order

STARTER

Number	Designation		Engine 177
BA15.30-P-1001-01T	Bolt, starter to crankcase and transmission	Nm	40

STARTER

Number	Designation		Engine 177
BA15.30-P-1003-01T	Nut, connection for terminal designation 50	Nm	9

STARTER

Number	Designation		Engine 177
BA15.30-P-1004-01T	Nut, connection for terminal designation 30	Nm	16
