Rear Switch Module, Basic Function - GF80.61-P-9890A
Model all (CAR)
with code 871 (HANDS-FREE ACCESS)

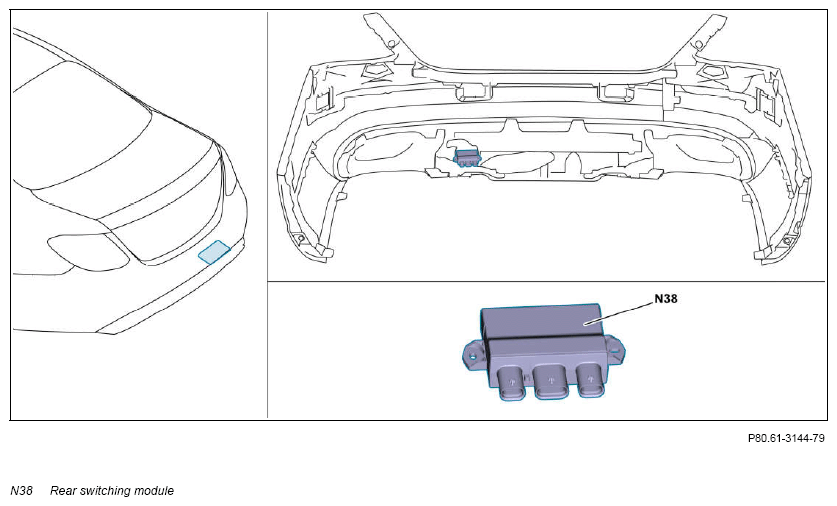

Fig 1: Rear Switching Module For Central Locking System Components Location - Model 205 with code 871
Location
The rear switch module is located behind the trim of the rear bumper.
Task
The rear switch module evaluates the signals of the following sensors:
- Rear switching module upper sensor
- Rear switching module lower sensor
The rear switch module evaluates the sensor signals and sends corresponding information to the central locking system.
