Remove/Install Starter - AR15.30-P-7100MRI

Engine 264 in model 205, 253 except code B01 (48V technology)

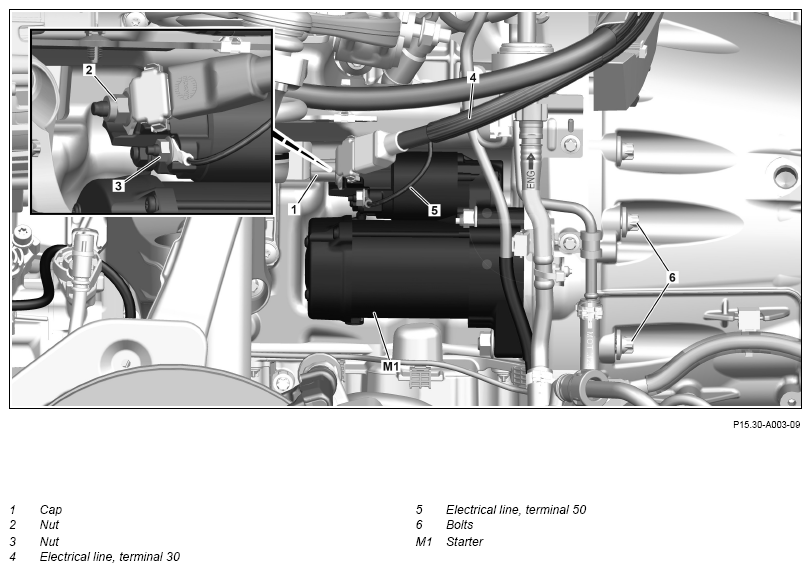

Fig 1: Starter Components Location - Engine 264 In Model 205 Except Code B01

Courtesy of MERCEDES-BENZ USA

Shown on removed engine

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Clamp off ground line of on-board electrical system battery (G1).		AR54.10-P-0003LW
2	Remove center and rear engine compartment lining.		AR61.20-P-1105LW
3	Remove cap (1).
4	Remove nuts (2, 3), place circuit 30 electric line (4) and circuit 50 electric line (5) to one side.
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Nut, connection for terminal designation 30	*BA15.30-P-1002-01U
		Nut, connection for terminal designation 50	*BA15.30-P-1003-01U
5	Remove screws (6) and remove starter (M1).	Bolt, starter/cover for starter opening to crankcase	*BA15.30-P-1001-01U
	Check
6	Check pinion of starter (M1) for damage and wear.	When reusing the starter (M1). If damage or wear is present, ↓ Replace starter (M1).
7	Remove charge air cooler with connected coolant hoses and place to one side.	Do not crush or kink or subject lines to tension This would lead to damage to the lines and can impair their function.	AR09.41-P-6817MRI
	Check
8	Turn engine at center bolt of crankshaft in direction of engine rotation; in this connection, check ring gear at drive plate for damage and wear.	If damage is present, ↓ Replace drive plate.	AR03.30-P-8003MRI
9	Install in the reverse order.
