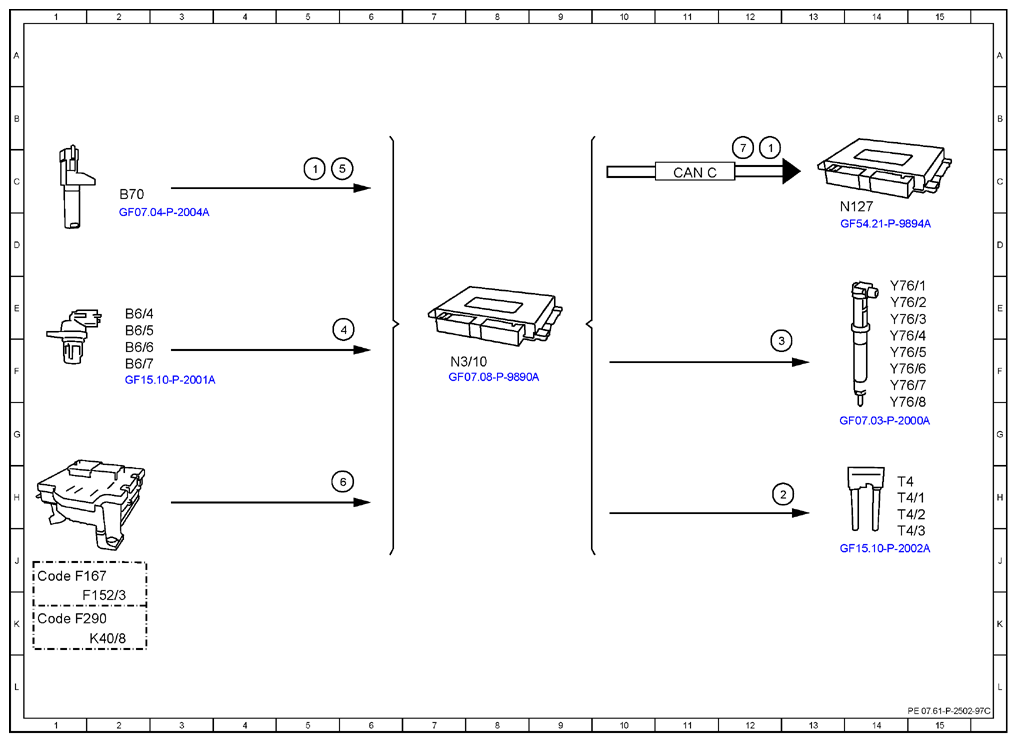

(Function Schematic For ME Synchronization Of Fuel Injection And Firing Order - PE07.61-P-2502-97C)
Engine 176, 177 in model 167
Engine 177 in model 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 5C |
| 1 | Engine speed, signal | 12C |
| 2 | Ignition coils, actuation | 13H |
| 3 | Fuel injectors, actuation | 12F |
| 4 | Camshaft Hall sensor, signal | 6E |
| 5 | Crankshaft Hall sensor, signal | 6C |
| 6 | Circuit 87, status | 6H |
| 7 | Engine running, signal | 12C |
| B6/4 | Left intake camshaft Hall sensor | 2E |
| B6/5 | Right intake camshaft Hall sensor | 2E |
| B6/6 | Left exhaust camshaft Hall sensor | 2F |
| B6/7 | Right exhaust camshaft Hall sensor | 2F |
| B70 | Crankshaft Hall sensor | 2C |
| CAN C | Engine CAN | 11C |
| Code F167 | Model series 167 | 1J |
| Code F290 | Model series 290 | 1K |
| F152/3 | Engine compartment fuse and relay module | 2K |
| K40/8 | Engine fuse and relay module | 2K |
| N127 | Drivetrain control unit | 14C |
| N3/10 | ME-SFI [ME] control unit | 7F |
| T4 | Cylinder 1+2 ignition coil | 14H |
| T4/1 | Cylinder 3+4 ignition coil | 14H |
| T4/2 | Cylinders 5+6 ignition coil | 14H |
| T4/3 | Cylinders 7+8 ignition coil | 14J |
| Y76/1 | Cylinder 1 fuel injector | 14E |
| Y76/2 | Cylinder 2 fuel injector | 14E |
| Y76/3 | Cylinder 3 fuel injector | 14E |
| Y76/4 | Cylinder 4 fuel injector | 14F |
| Y76/5 | Cylinder 5 fuel injector | 14F |
| Y76/6 | Cylinder 6 fuel injector | 14F |
| Y76/7 | Cylinder 7 fuel injector | 14F |
| Y76/8 | Cylinder 8 fuel injector | 14G |
