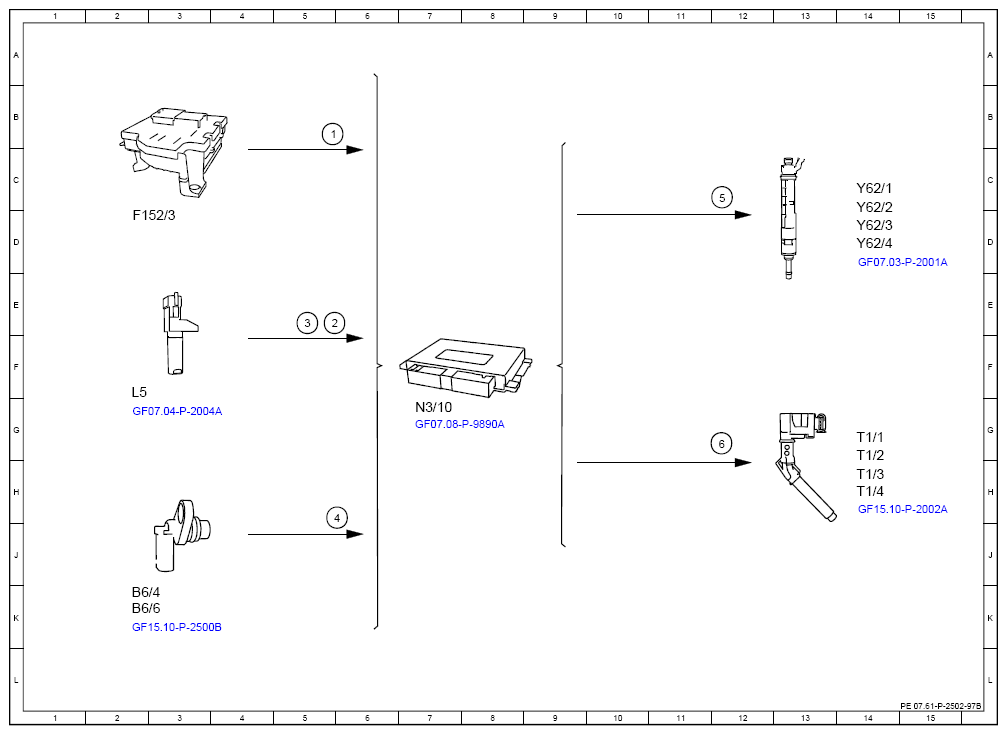

(Function Schematic For ME Synchronization Of Fuel Injection And Firing Order - PE07.61-P-2502-97B)
Engine 139 in model 206, 232, 236, 254
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 5B |
| 2 | Engine speed, signal | 5E |
| 3 | Crankshaft Hall sensor, signal | 5E |
| 4 | Camshaft Hall sensor, signal | 5H |
| 5 | Fuel injectors, actuation | 12C |
| 6 | Ignition coils, actuation | 12G |
| B6/4 | Camshaft Hall sensor | 2K |
| B6/6 | Camshaft Hall sensor | 2K |
| F152/3 | Fuse and relay module | 2D |
| L5 | Crankshaft Hall sensor | 2F |
| N3/10 | Engine management control unit | 7G |
| T1/1 | Ignition coil | 14G |
| T1/2 | Ignition coil | 14G |
| T1/3 | Ignition coil | 14H |
| T1/4 | Ignition coil | 14H |
| Y62/1 | Injector | 14C |
| Y62/2 | Injector | 14D |
| Y62/3 | Injector | 14D |
| Y62/4 | Injector | 14D |
