Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136MFC
Engine 260 in model 118, 177, 247
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove right front axle shaft. | AR33.30-P-0620MFA | |
| 2 | Remove heat shield of front axle shaft. | AR49.00-P-1000-05MFC | |
| *BA22.10-P-1002-02E | |||

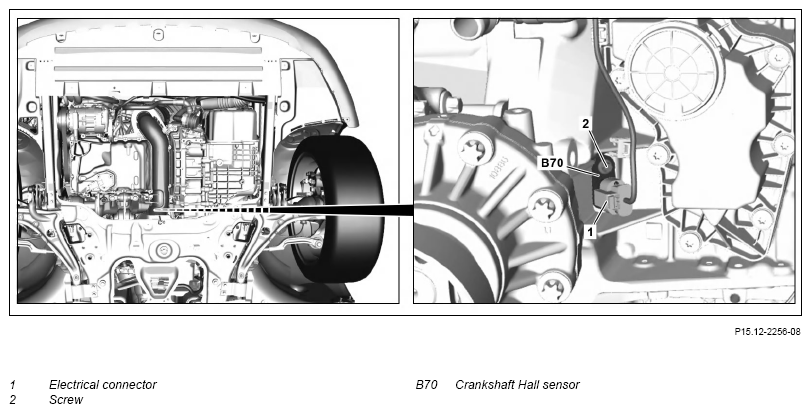

| 3 | Release and disconnect electrical connector (1) from crankshaft Hall sensor (B70). | ||
| 4 | Remove screw (2) and remove crankshaft Hall sensor (B70). | *BA15.10-P-1001-03I | |
| 5 | Install in the reverse order. | ||
| 6 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Conduct Engine test run while checking for proper operation of the engine. |
POSITION SENSOR
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA15.10-P-1001-03I | Bolt, position sensor for crankshaft to crankcase/oil pan | Nm | 8 |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 260 | ||
|---|---|---|---|---|
| BA22.10-P-1002-02E | Bolt, heat shield to engine carrier/crankcase/oil pan/cylinder head | M6 | Nm | 8 |
