Remove/Install Starter - AR15.30-P-7100W

Engine 152 in model 172

Engine 276 in model 172

Shown on ENGINE 276.9

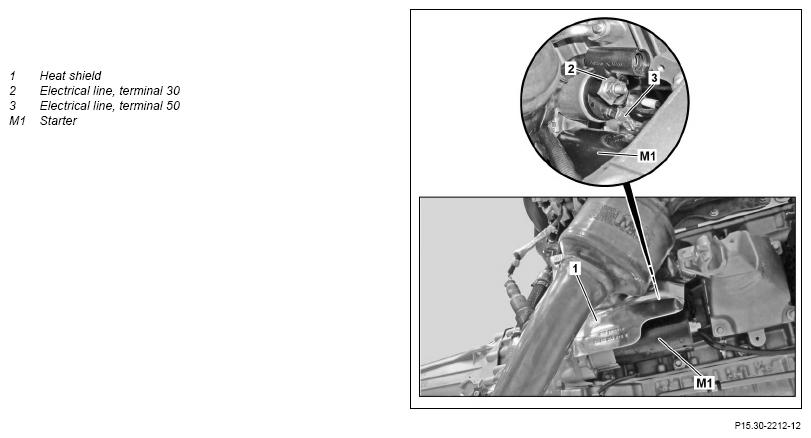

Fig 1: Starter Components Location - Engine 276 In Model 172 (Shown On Engine 276.9)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach ground line from battery		AR54.10-P-0003W
2	Remove lower engine compartment paneling		AR61.20-P-1105W
3	Remove heat shield on right engine mount	Engine 276.8 in model 172 Bolt, heat shield to engine support	*BA22.10-P-1003-02A
4	Remove heat shield (1)
5	Detach wiring harness on starter (M1)		AR15.30-P-7100-03W
		Nut, connection for terminal designation 30	*BA15.30-P-1001-01J
		Nut, connection for terminal designation 50	*BA15.30-P-1002-01J
6	Detach starter (M1) at crank case	Bolt, starter to crank case/transmission	*BA15.30-P-1003-01J
7	Remove starter (M1) from below
	Check
8	Turn engine at the center bolt of crankshaft in direction of engine rotation and check the starter ring gear on clutch plate for wear and damage	When replacing the starter (M1). Socket wrench bit For wear or damage ↓ Replace drive plate.	Fig 2
		Engine 152.9 in model 172.4	AR03.30-P-8001MMI
		Engine 276 in model 172	AR03.30-P-8001W
9	Install in the reverse order

Fig 2: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
