Remove/install crankshaft Hall sensor - AR15.12-P-2136LFB
ENGINE 157, 278 in MODEL 217, 222
MODIFICATION NOTES
| 30.7.15 | Remove vacuum pump, added. | Operation step 1 |
| Remove/install | |||
| 1 | Remove vacuum pump | Engine 157, 278 in model 217, 222 with code M005 (4MATIC) Engine 157, 278 in model 222 with code M005 (4MATIC) |
AR43.05-P-1320LFB |
| Engine 157, 278 in model 217 with code M005 (4MATIC) | AR43.05-P-1320LC | ||
| 2 | Remove center and rear engine compartment paneling downwards | Engine 157, 278 in model 217, 222 except code M005 (4MATIC) | AR61.20-P-1105LF |

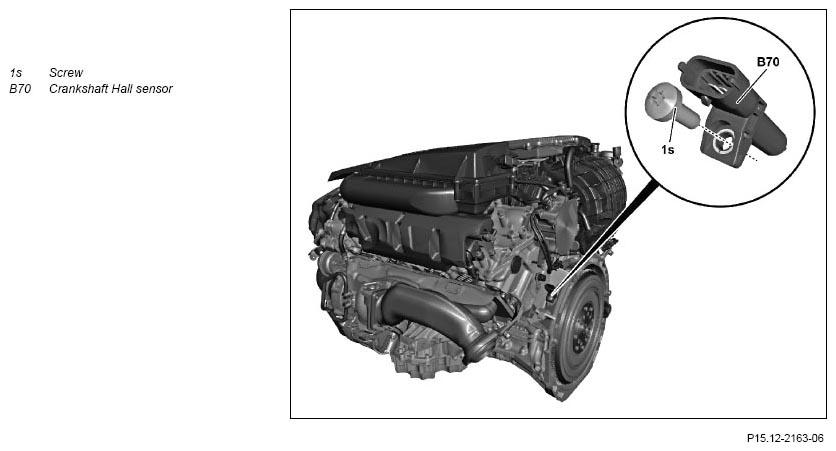

| 3 | Disconnect electrical connection at crankshaft Hall sensor (B70) | ||
| 4 | Remove bolt (1s) | *BA15.10-P-1001-03E | |
| 5 | Pull crankshaft Hall sensor (B70) out of the cylinder crankcase | ||
| 6 | Install in the reverse order | ||
| 7 | Perform default initialization and then sensor rotor adaptation using the diagnostic system | When replacing the crankshaft Hall sensor (B70). | |
| AD00.00-P-2000-04B | |||
POSITION SENSOR
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA15.10-P-1001-03E | Bolt, crankshaft Hall sensor to crankcase | Nm | 8 | 8 |
