Remove/install alternator - AR15.40-P-5032MUB

MODEL 217 with ENGINE 279

MODEL 222 with ENGINE 277, 279

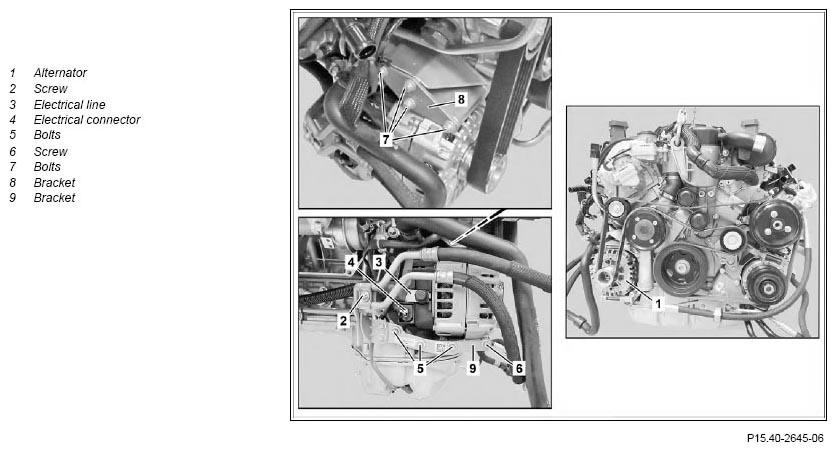

Fig 1: Alternator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003LF
	Notes on battery		AH54.10-P-0001-01A
2	Remove lower engine compartment paneling		AR61.20-P-1105LF
3	Remove fan unit		AR20.40-P-5050MUB
4	Mount guard plate for radiator
			WF58.50-P-0110-01A
5	Remove poly-V belt		AR13.20-P-0001MUB
6	Remove air pump		AR14.30-P-7251MUB
7	Remove screw/bolt (2)	Bolt, clamp of oil cooler oil line to bracket	*BA27.55-P-1005-01D
8	Detach electrical line (3).	Nut, terminal designation B+ to alternator	*BA15.40-P-1003-01R
9	Unplug electrical connection (4) at alternator (1)
10	Remove screw/bolts (5, 6)	The screw/bolt (6) remains on the holder (9) and is removed together with the alternator (1). Bolt, alternator/bracket to alternator bracket	*BA15.40-P-1001-01R
11	Remove screw/bolts (7)	Bolt, alternator/bracket to alternator bracket	*BA15.40-P-1001-01R
12	Take out bracket (8)
13	Remove alternator (1) with bracket (9) upwards
14	Install in the reverse order
15	Read out fault memory and clear
			AD00.00-P-2000-04B
