Overview Of System Components For Windows And Sightproofing - GF67.00-P-9999LF
Model 217, 222

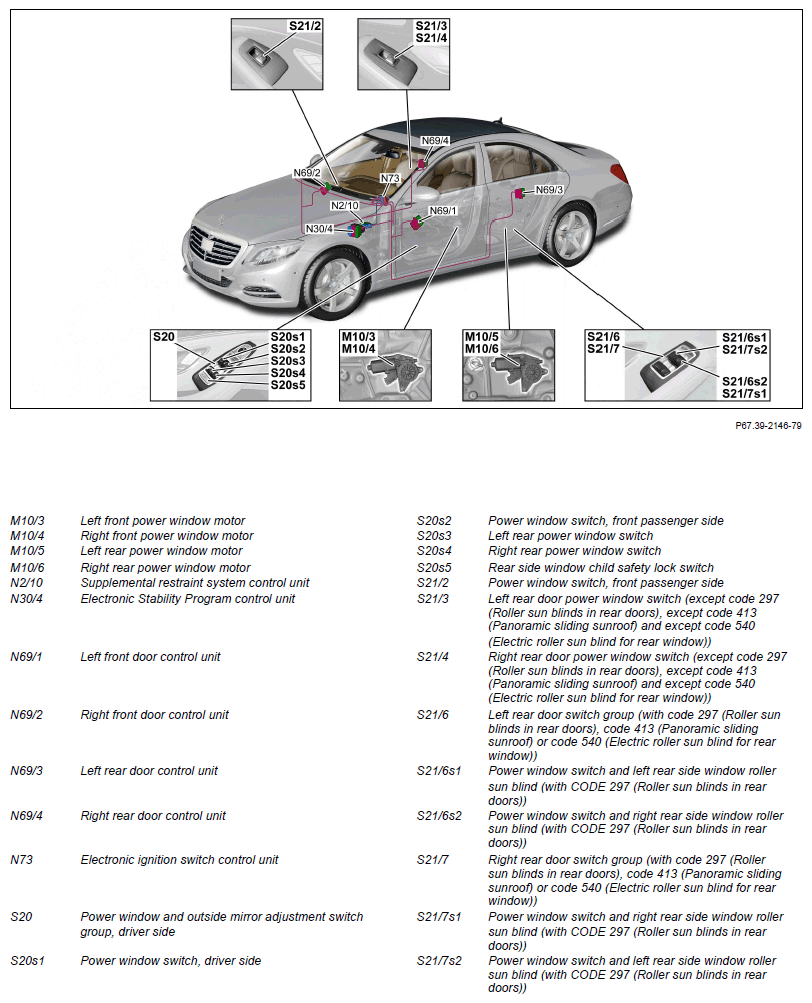

Power window (model 222), shown on model 222.0

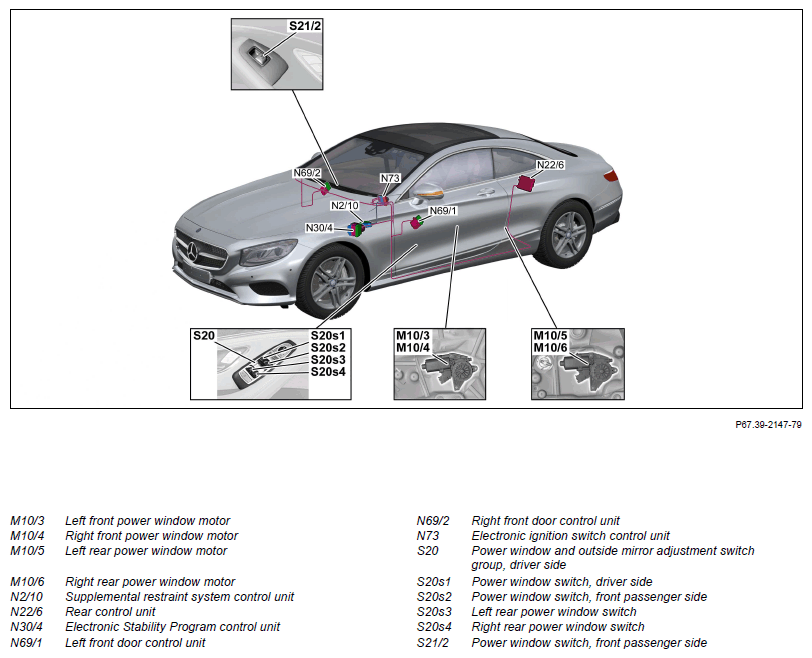

Power window (model 217)

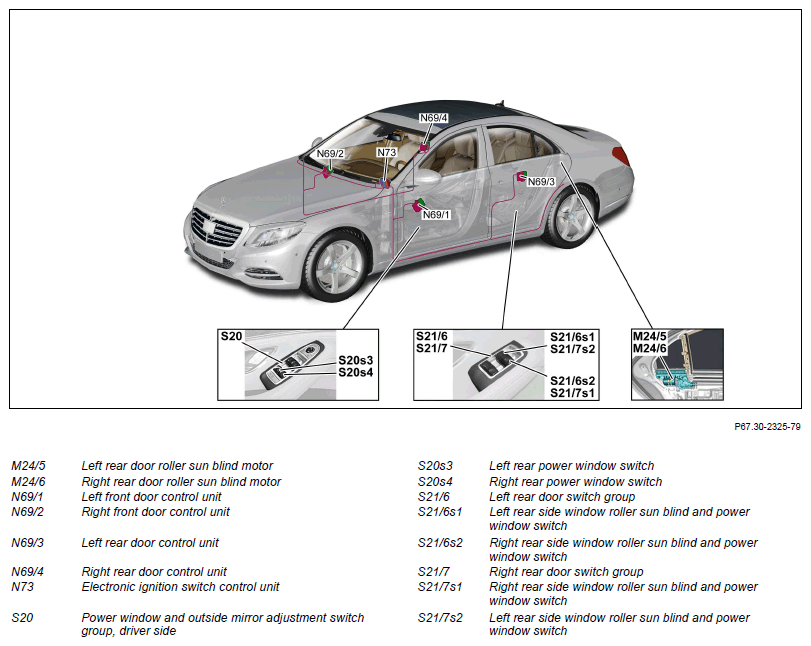

Rear side roller sun blind (model 222 with CODE 297 (Roller sun blinds in rear doors)), shown on model 222.0

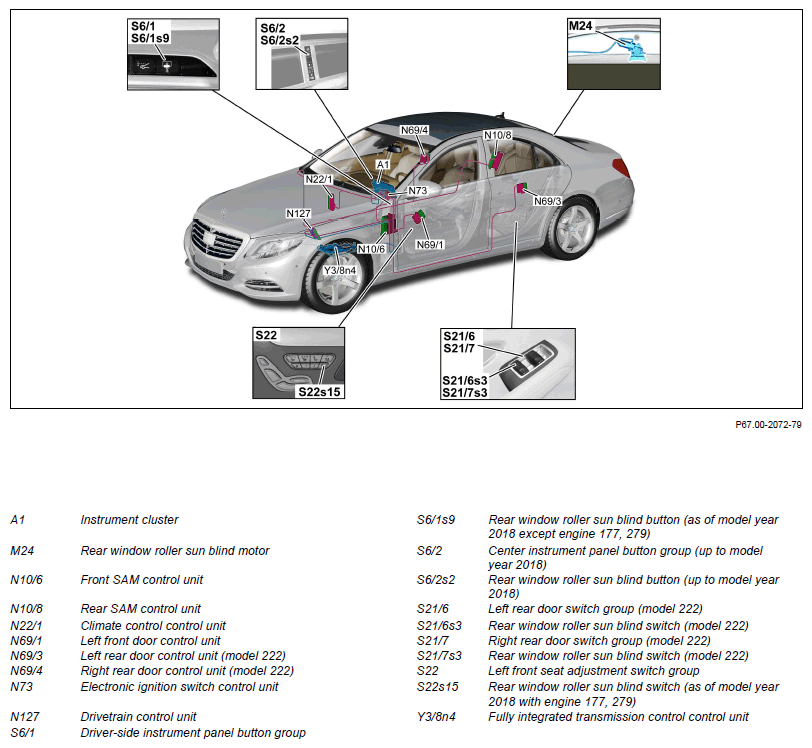

Roller sunblind (with code 540 (Electric roller sunblind for rear window)), shown on model 222.0
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 |
GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 |
GF54.30-P-6000LFM | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Rear control unit, component description | Model 217 N22/6 |
GF54.21-P-4134LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 N30/4 |
GF42.45-P-5119LF | |
| Model 222.004/057/104/157/163 up to model year 2018 N30/4 |
GF42.45-P-5119LFH | ||
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 |
GF42.45-P-5119LFM | ||
| Model 222.173 as of model year 2018 N30/4 |
GF42.45-P-5119LFA | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N69/3, N69/4 |
GF72.29-P-6021LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 Model 222 with engine 176.9, 177.9, 256.9, 264.9 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 Model 222.163 with engine 276.8 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 N127 |
GF54.21-P-2141OGS | ||
| Model 222 with engine 651.9 N127 |
GF54.21-P-2141OLA | ||
| Model 222 with engine 656.9 N127 |
GF54.21-P-2141OIA | ||
| Component description for fully integrated transmission control unit | Model 222 with transmission 724.2 up to model year 2018 Y38n4 |
GF27.60-P-5165LFH | |
| Model 217, 222 with transmission 722.9 (except 722.931/932/971) Y38n4 |
GF27.60-P-5165AHB | ||
| Model 217, 222 with transmission 722.931/971 Y38n4 |
GF27.60-P-5165AHD | ||
| Model 217, 222 with transmission 722.932 Y38n4 |
GF27.60-P-5165AHY | ||
| Model 217, 222 with transmission 725.0 (except 725.017/066/096) Y38n4 |
GF27.60-P-5165AND | ||
| Model 217, 222 with transmission 725.066/096 Y38n4 |
GF27.60-P-5165ANQ | ||
| Model 222 with transmission 725.017 Y38n4 |
GF27.60-P-5165ANP | ||
| Table of contents for function description of windows and sightproofing | GF67.00-P-0999LF |
