Remove/Install Tire Pressure Monitoring Control Unit - AR40.15-P-0101FR
Model 257, 290
with code 475 (Tire pressure monitoring system)

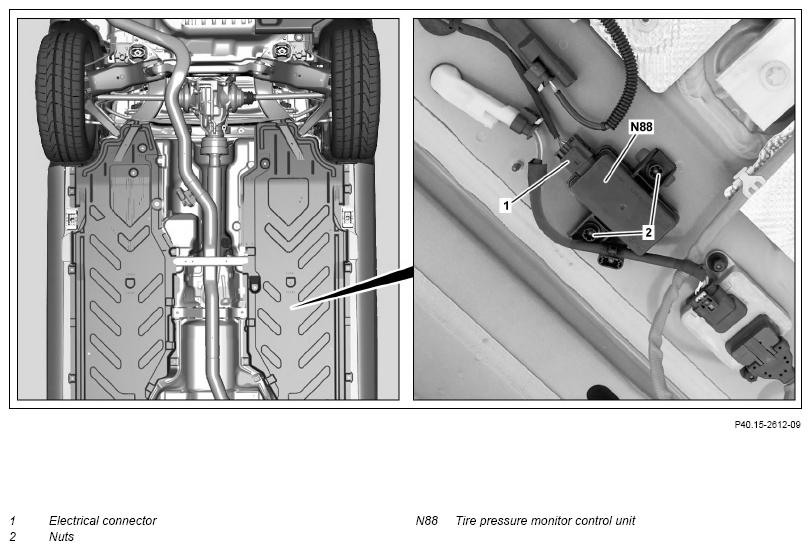

Shown on model 257
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Commission tire pressure monitoring system control unit (N88). | When removing tire pressure monitoring system control unit (N88). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove right underfloor paneling. | AR61.30-P-1001FR | |
| 4 | Disconnect electrical connector (1). | ||
| 5 | Unscrew nuts (2) and remove tire pressure monitoring system control unit (N88). | ||
| 6 | Install in the reverse order. | ||
| 7 | Activate tire pressure monitoring system using instrument cluster. | AR54.30-P-1001-01FR |
