Rim Designation - GF40.10-P-1010-01A

MODEL all

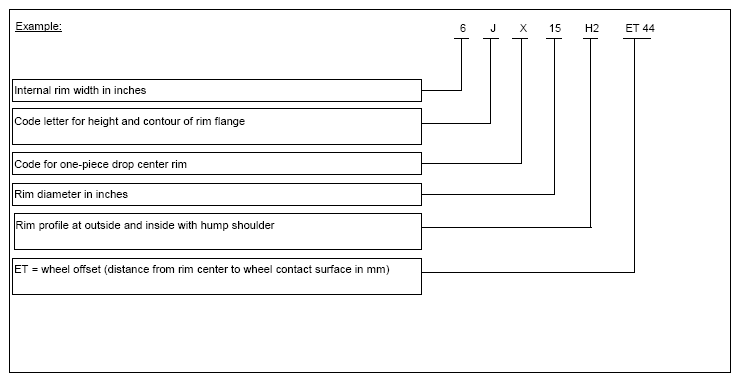

G13955448Courtesy of MERCEDES-BENZ USA

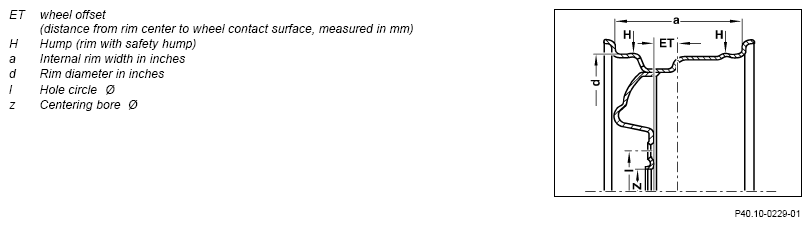

G14136365Courtesy of MERCEDES-BENZ USA

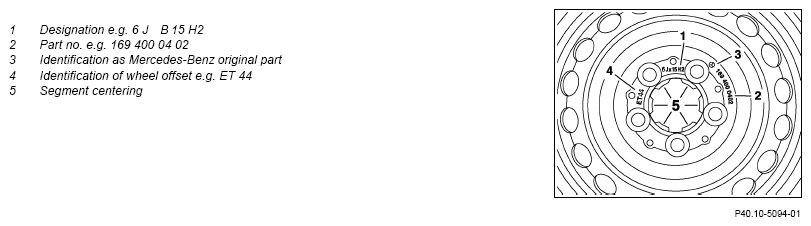

Sheet-steel disk wheel

G14136366Courtesy of MERCEDES-BENZ USA

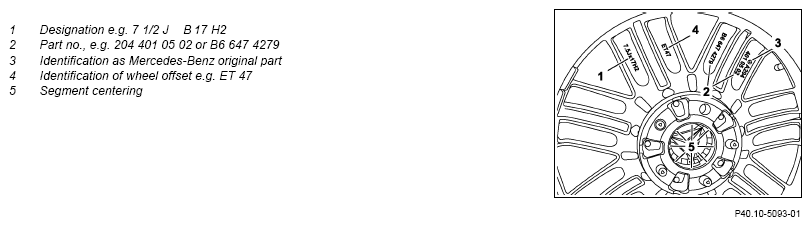

Light alloy rim

G14136367Courtesy of MERCEDES-BENZ USA
