Overview Of System Components For Windows And Sightproofing - GF67.00-P-9999FR
Model 257, 290
up to model year 2021

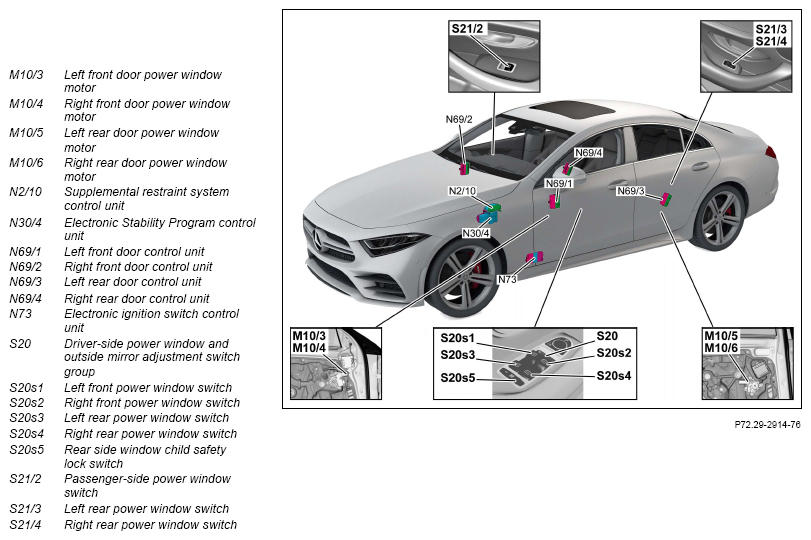

Power window, shown on model 257.3

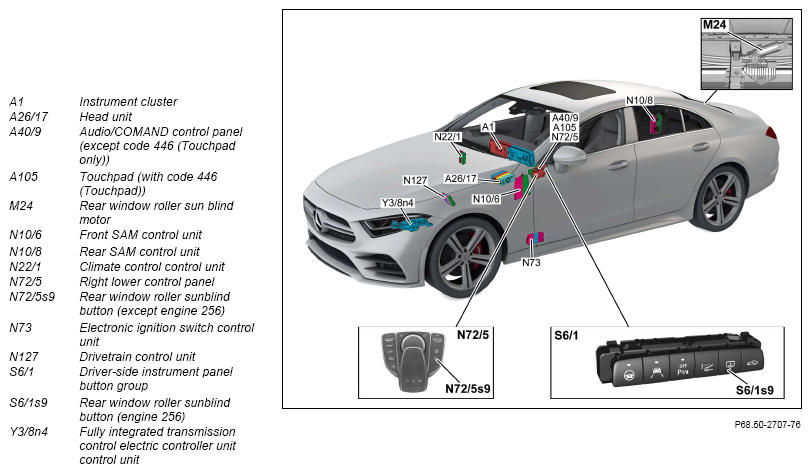

Roller sunblind (model 257 with code 540 (Electric roller sunblind for rear window)), shown on model 257.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Head unit, component description | Model 257, 290 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRA | |
| Model 257, 290 up to model year 2021 with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND control panel | Model 257, 290 up to model year 2021 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FR | |
| Touchpad, component description | Model 257, 290 up to model year 2021 with code 446 (Touchpad only) Model 257 up to model year 2021 with code 448 (Touchpad) A105 |
GF54.21-P-4511FR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FR | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FR | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250FR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FR | |
| Lower control panel, component description | N72/5 | GF54.25-P-4270FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Drivetrain control unit, component description | Model 257 with engine 654.9 up to model year 2021 N127 |
GF54.21-P-2141ORD | |
| Model 257 with engine 656.9 up to model year 2021 N127 |
GF54.21-P-2141OIA | ||
| Model 257, 290 with engine 256.9 up to model year 2021 Model 290 with engine 177.9 up to model year 2021 N127 |
GF54.21-P-2141LF | ||
| Model 257 with engine 264.9 up to model year 2021 N127 |
GF54.21-P-2141MRP | ||
| Fully integrated transmission control electric controller unit control unit, component description | Model 257 with transmission 725.0 up to model year 2021 Model 290 with transmission 725.0 (except 725.096) up to model year 2021 Y38n4 |
GF27.60-P-5120ANR | |
| Model 290 with transmission 725.096 up to model year 2021 Y38n4 |
GF27.60-P-5120ANS | ||
| Table of contents for function description of windows and sightproofing | GF67.00-P-0999FR |
