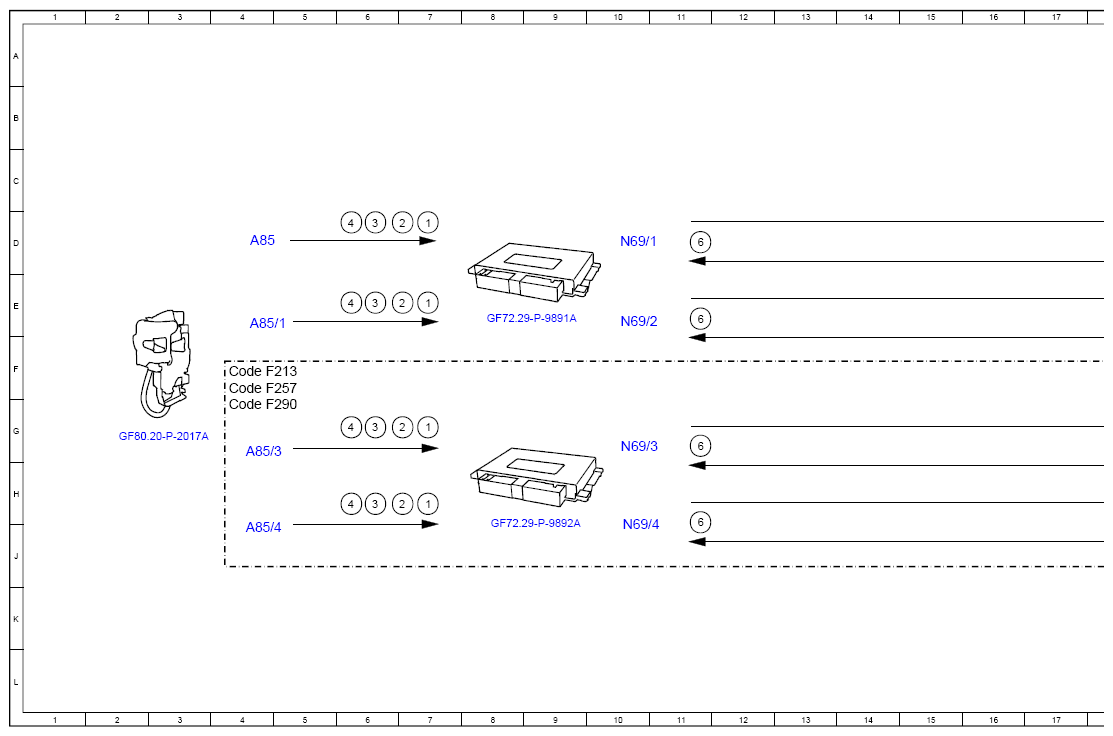

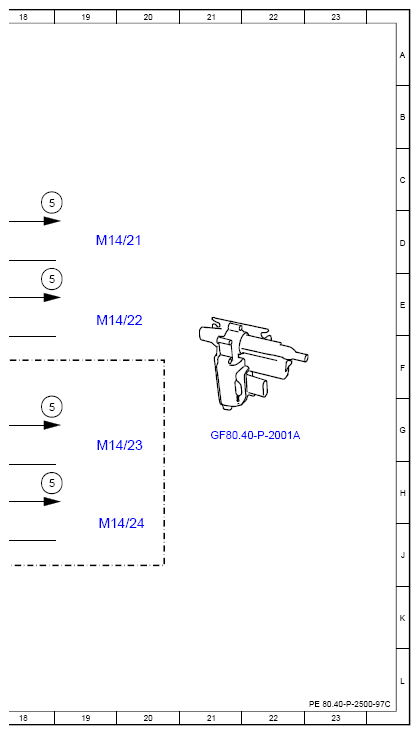

Function Schematic For Power Closing Function - PE80.40-P-2500-97C
Model 213, 238, 257, 290 as of Model year 2021
with code 883 (Power locking)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Microswitch pre-lock, status | 7D |
| 1 | Microswitch pre-lock, status | 7E |
| 1 | Microswitch pre-lock, status | 7G |
| 1 | Microswitch pre-lock, status | 14B |
| 2 | Microswitch main button, status | 7C |
| 2 | Microswitch main button, status | 7E |
| 2 | Microswitch main button, status | 7G |
| 2 | Microswitch main button, status | 7H |
| 3 | Microswitch inside actuation, status | 6D |
| 3 | Microswitch inside actuation, status | 6E |
| 3 | Microswitch inside actuation, status | 6G |
| 3 | Microswitch inside actuation, status | 7H |
| 4 | External actuation microswitch, status | 6D |
| 4 | External actuation microswitch, status | 6E |
| 4 | External actuation microswitch, status | 6G |
| 4 | External actuation microswitch, status | 6H |
| 5 | Actuator servo closing, control | 18C |
| 5 | Actuator servo closing, control | 18E |
| 5 | Actuator servo closing, control | 18G |
| 5 | Actuator servo closing, control | 18H |
| 6 | Microswitch actuator servo closing, status | 11D |
| 6 | Microswitch actuator servo closing, status | 11E |
| 6 | Microswitch actuator servo closing, status | 11G |
| 6 | Microswitch actuator servo closing, status | 11J |
| A85 | Left Front Door Lock | 4D |
| A85/1 | Right Front Door Lock | 4E |
| A85/3 | Left Rear Door Lock | 4G |
| A85/4 | Right Rear Door Lock | 4J |
| Code F213 | Model 213 | 4F |
| Code F257 | Model 257 | 4F |
| Code F290 | Model 290 | 4G |
| M14/21 | Actuator servo closing front door on the left | 19D |
| M14/22 | Actuator servo closing front door on the right | 19E |
| M14/23 | Actuator servo closing rear door left | 19G |
| M14/24 | Actuator for power closing rear door on the right | 19J |
| N69/1 | Left front door control unit | 10D |
| N69/2 | Right front door control unit | 10E |
| N69/3 | Left rear door control unit | 10G |
| N69/4 | Right rear door control unit | 10J |
