Trunk Lid/Liftgate Control Warning Buzzer, Basic Function - GF80.45-P-2015A
Model all (CAR)
with code 881 (Remote Trunk Lid/lifgate closing)
Model all (CAR)
with code 890 (Automatic rear-end door)

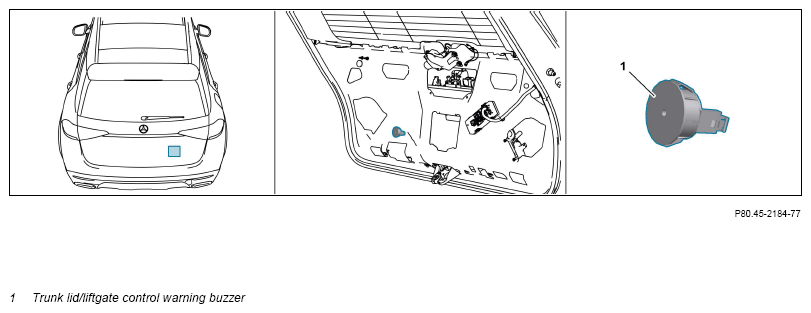

Example illustration
Overview
This document contains information on:
- General
- Function
General
The warning buzzer is integrated in the trunk lid or tailgate.
Function
The warning buzzer reports back the opening/closing process of the trunk lid or tailgate. The warning buzzer is actuated by the control unit for the trunk lid/liftgate control.
| Component descriptions | |||
| Trunk lid/liftgate control warning buzzer, component description | Model 223 with code 871 (Sensor system for trunk lid opening/closing) with code 881 (Remote Trunk Lid/lifgate closing) |
GF80.20-P-6085A | |
| Model 243 with code 890 (Automatic rear-end door) |
GF80.20-P-6085B | ||
| Model 206 with code 881 (Remote Trunk Lid/lifgate closing) Model 206 with code 890 (Automatic rear-end door) |
GF80.20-P-6085C | ||
| Model 297 with code 890 (Automatic rear-end door) |
GF80.20-P-6085D | ||
| Model 295 with code 881 (Remote Trunk Lid/lifgate closing) |
GF80.20-P-6085E | ||
| Model 232 with code 881 (Remote Trunk Lid/lifgate closing) Model 232 with code 890 (Automatic rear-end door) |
GF80.20-P-6085F |
