Remove/Install Intermediate Gear For Engine Control - Ar05.10-D-7620TSR
Engine 651 in model 907
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove | |||
| 1 | Remove the timing case cover. | Model 907 | AR01.40-D-8000TSR |
| 2 | Remove oil pan. | Model 907 | AR01.45-D-7500TSR |
| 3 | Remove oil suction pipe. | AR18.10-D-4020TSR | |
| 4 |
Move engine to basic position and engage. | Model 907 | AR05.10-D-7620-01TSR |
| Fig 5 | |||
| Fig 4 | |||
| Fig 1 | |||
| Fig 3 | |||

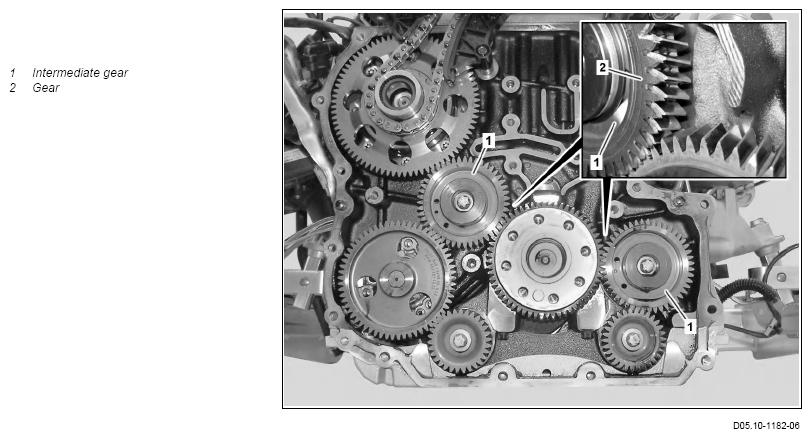

| 5 | Remove intermediate gears (1). | AR05.10-D-7620-02TSR | |
| *BA05.10-N-1001-02A | |||
| Check | |||
| 6 | Check intermediate gears (1) for damage and wear. | Depending on the findings, ↓ replace affected intermediate gear (1). |
|
| Install | |||
| 7 | Install intermediate gears (1). | AR05.10-D-7620-02TSR | |
| *BA05.10-N-1001-02A | |||
| Check | |||
| 8 | Check preload of intermediate gears (1). | ||
| 9 | Remove assembly tool. | Fig 3 | |
| 10 | Remove hold-down tools. | Fig 1 | |
| 11 | Install front camshaft bearing caps. | *BA05.20-N-1002-01O | |
| 12 | Install oil suction pipe. | AR18.10-D-4020TSR | |
| 13 | Install oil pan. | Model 907 | AR01.45-D-7500TSR |
| 14 | Install timing case cover. | Model 907 | AR01.40-D-8000TSR |
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA05.10-N-1001-02A | Screw/bolt, intermediate gear to crankcase | Nm | 80 |
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA05.20-N-1002-01O | Bolt, camshaft bearing cap to cylinder head | Nm | 9 |
