Remove/Install Boost Pressure Sensor - Ar09.41-D-2006TSR
Engine 651 in model 907
MODIFICATION NOTES
| 09.07.2019 | Method changed, basic data value added | Operation step 3 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||

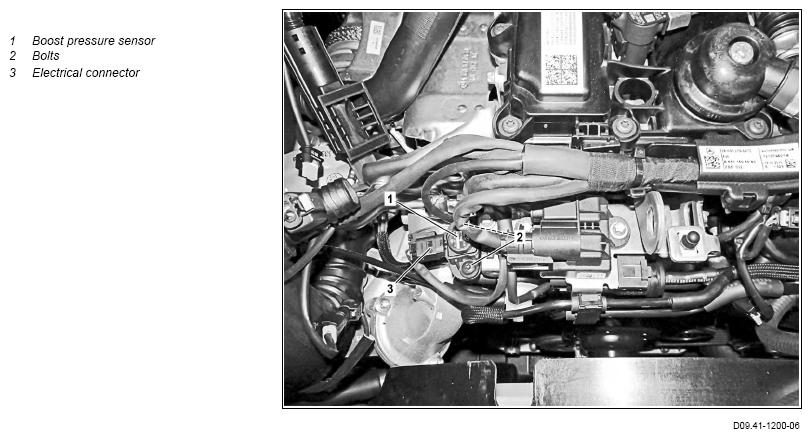

| 1 | Remove engine cover. | AR01.10-D-2405TSR | |
| 2 | Disconnect electrical connector (3). | ||
| 3 | Remove screws (2). 1/ | *BA09.41-N-1013-01TSR | |
| 4 | Remove boost pressure sensor (1) from the bracket. | ||
| 5 | Install in the reverse order. |
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA09.41-N-1013-01TSR | Screw, boost pressure sensor to holder | Nm | 5 |
