Remove/Install Upper Front CROSSMEMBER For Hood Catch With Radiator Unit - Ar88.00-D-2303-01TS
| Risk of burns and scalding when handling hot fluids and components they come into contact with. Risk of injury to skin and eyes when handling hot fluids. | Wear protective gloves, protective clothing and safety glasses, if necessary. Pour hot fluids in suitable containers only. | AS00.00-Z-0033-01A | |
| Risk of burn injuries and scalding when working on AdBlue (R) lines and the component parts attached to them. Risk of injury to skin and eyes when handling AdBlue (R). Risk of poisoning caused by swallowing AdBlue (R) | Pour AdBlue® only into suitable containers. Wait until the pressure is released before starting any work on the exhaust aftertreatment system. | AS49.20-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on use, material properties and handling of NOx reducing agent | AH49.20-N-0002-01A |
Engine 642, 651 in model 907
CROSS MEMBER FOR HOOD CATCH
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA88.00-N-1001-05TS | Bolt, crossmember for hood catch to front upper longitudinal member | Nm | 10 |
CROSS MEMBER FOR HOOD CATCH
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA88.00-N-1002-05TS | Bolt, crossmember for hood catch to front upper inner longitudinal member | Nm | 10 |
CROSS MEMBER FOR HOOD CATCH
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA88.00-N-1003-05TS | Bolt, crossmember for hood catch to front longitudinal member | Nm | 20 |
ENGINE HOOD
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA88.40-N-1004-01TS | Bolt, lower section of hood catch to assembly carrier | Nm | 9 |

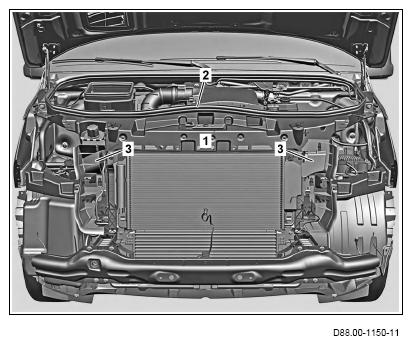

- Remove covers (3).
To do this, remove electrical wiring harness from covers (3) and unclip covers (3) with the
clip remover.
- Remove screws/bolts (5)
.

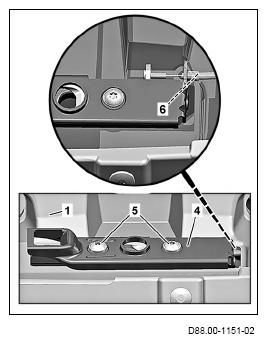

- Remove hood catch lower part (4).
- Unhook hood cable (6) from upper front crossmember with radiator unit (1) and position outside the working area.
- Remove hoses (11) at NOx reducing agent tank.
Immediately plug openings.
Otherwise the exhaust gas aftertreatment system can be contaminated, which can lead to malfunctions of the exhaust gas aftertreatment system.

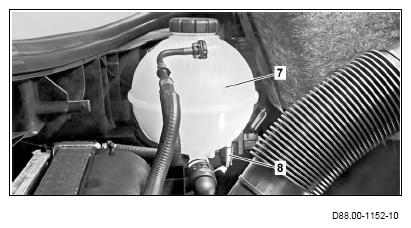

- Disconnect electrical connector (8) from coolant expansion reservoir (7).
- Engine 642, 651 in model 907 with code HH4 (THERMOTRONIC automatic climate control) or code HH9 (Semi-automatically controlled air conditioning, TEMPMATIC)

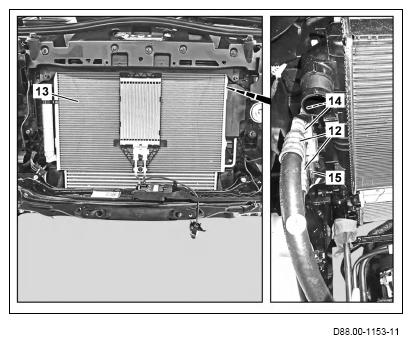

Disconnect electrical connector (15).

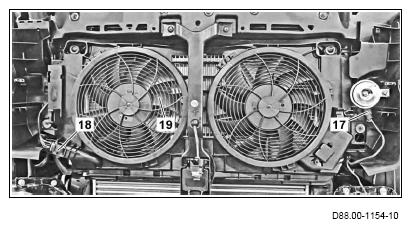

- Disconnect horn electrical connector (17).
- Engine 642, 651 in model 907 with code HH4 (THERMOTRONIC automatic climate control) or code HH9 (Semi-automatically controlled air conditioning, TEMPMATIC)
Disconnect electrical connector (18) from condenser fan unit (19).

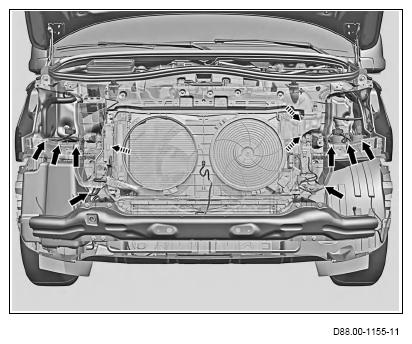

- Remove electrical wiring harness from the upper front crossmember with radiator unit (1) (arrows).

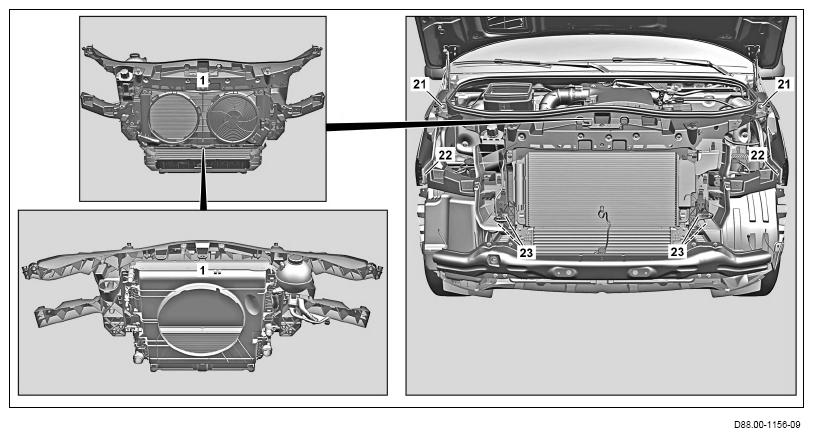

- Remove screws (21, 22, 23)
- Remove upper front crossmember with radiator unit (1).
Aid of helper required.
Ensure correct seating of the seal on the upper front crossmember with radiator unit (1).
- Install in the reverse order.
