Remove/Install Rear Section Of Front Fender Liner - Ar88.10-D-1321TS
Model 907

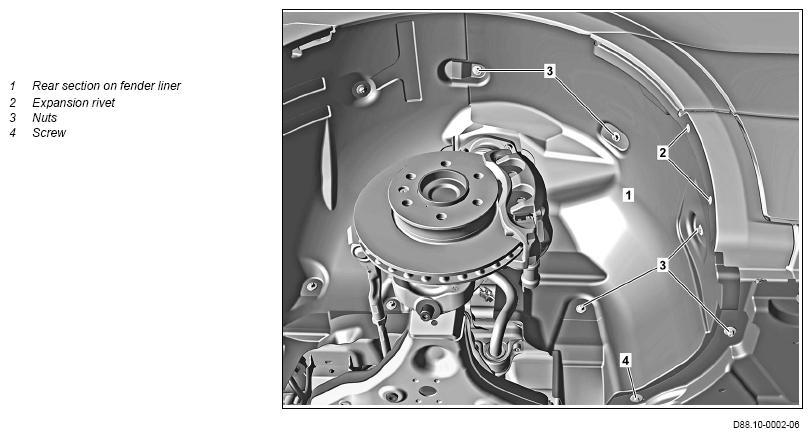

Shown on model 907 left, front wheel removed
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 2 | Remove expansion rivets (2) | Depending on findings ↓ Replace damaged expansion rivet (2). |
|
| 3 | Unscrew nuts (3) | Depending on findings ↓ Replace damaged nuts (3). |
|
| 4 | Unscrew bolt (4) | ||
| 5 | Remove rear section of fender liner (1) | ||
| 6 | Install in the reverse order |
