Remove/Install Radiator Grille - Ar88.40-D-4001TS

Model 907

Shown on model 907 with code JB6 (Parking package with 360° camera)

Shown on model 910 with code ME0 (electric motor 85 kW)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).	Model 907.6/7 with code JB6 (Parking package with 360-degree camera)
2	Open socket flap (6).	Model 910 with engine 780.703 with code ME0 (Electric motor 85 kW)
3	Remove voltage of high-voltage on-board electrical system.	* Applies to Europe only Model 910 with engine 780.703 with code ME0 (Electric motor 85 kW) Do not close socket flap (6).	AR47.70-D-1000TE
4	Remove screw/bolts (2).

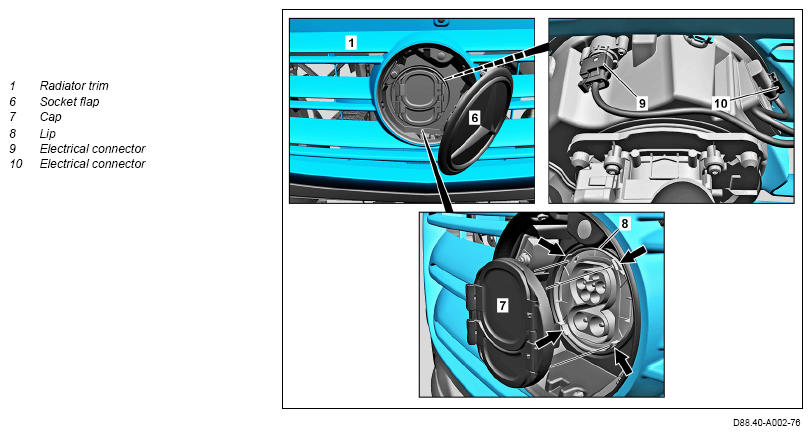

5	Remove cap (7) from external power supply socket.	Carefully release locks (arrows). Damage may occur otherwise. For this purpose, use a suitable tool through openings on cap (7) to release locks (arrows) and remove cap (7). Installation: Check cap (7) is correctly seated.

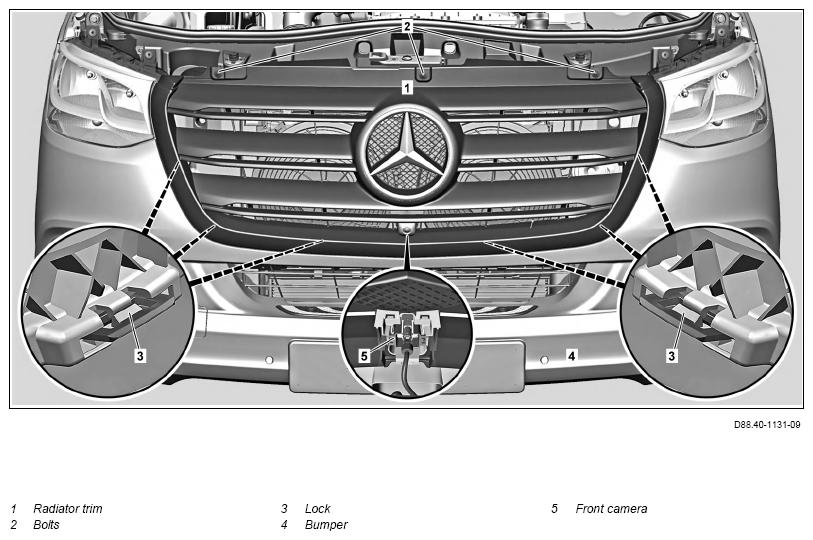

6	Remove radiator grille (1) on the bumper (4).	Model 907 except code JB6 (Parking package with 360-degree camera) Model 907.6/7 with code JB6 (Parking package with 360-degree camera) For this purpose, release locks (3) and disconnect electrical connector of front camera (5). To do this, unlock locks (3) and disconnect electrical connectors (9, 10). Installation: Ensure locks (3) are correctly seated. Check locks (3). If locks (3) are damaged and are not locked properly, ↓ Replace radiator grille (1) and/or bumper (4). Remove/install front bumper	AR88.20-D-2000TS
7	Install in the reverse order.
	Check
8	Perform function check of front camera (5).	Model 907.6/7 with code JB6 (Parking package with 360-degree camera)
