Remove/Install Outside Mirror Trim - Ar88.70-D-9040TSS

Model 907

with code FS1 (Mirror support, extended)

Model 907

with code FS2 (Extra-long mirror bracket)

Model 907

with code XL4 (Weight variant 5.500 kg)

with code ZU7 (National version for Canada)

Model 907

with code XL4 (Weight variant 5.500 kg)

with code ZU8 (National version for USA)

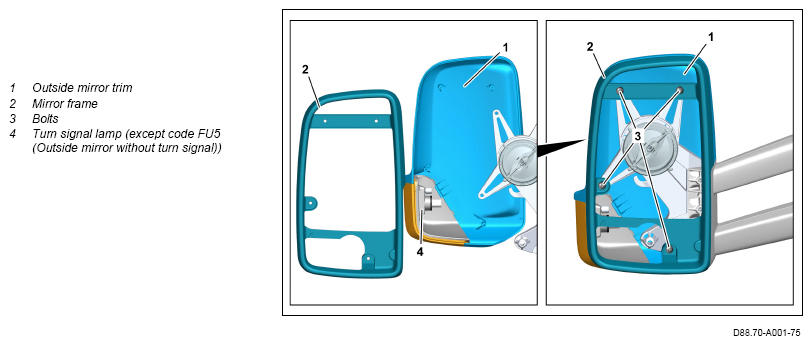

Shown on left outside mirror except code FU5 (Outside mirror without turn signal)

	Remove/install
1	Remove upper and lower mirror glass at left and/or right outside mirror.		AR88.70-D-9020TS
2	Remove screw/bolts (3).
3	Remove mirror frame (2) from outside mirror trim (1).
4	Remove turn signal lamp (4).	Model 907 except code FU5 (Outside mirror without turn signal)	AR82.25-D-4727TS
5	Remove outside mirror trim (1).
6	Install in the reverse order.
