Remove/Install Outside Mirror Adjustment Motor - Ar88.79-D-3475TS
Model 907
with code F68 (Exterior mirrors, electr. adjustable and heated)

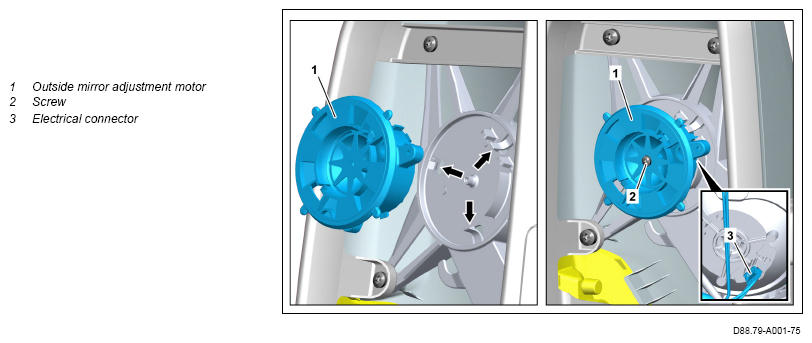

Shown on left outside mirror except code FS1 (Mirror bracket, extended)

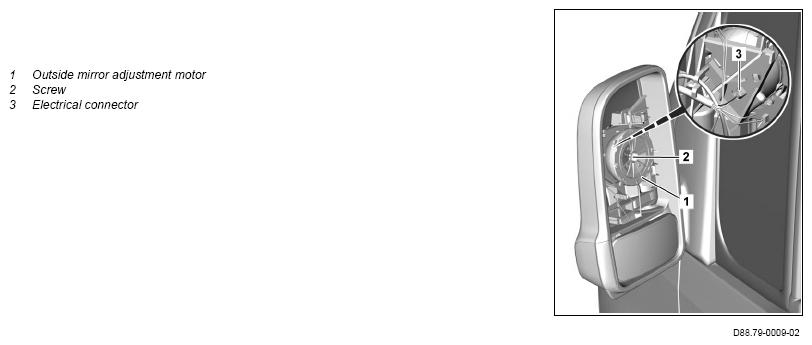

Shown on left outside mirror with code FS1 (Mirror bracket, extended)
| Remove/install | |||
| 1 | Remove upper mirror glass at left and/or right outside mirror. | AR88.70-D-9020TS | |
| 2 | Remove screw (2). | ||
| 3.1 | Remove outside mirror adjustment motor (1) from carrier until electrical connector (3) can be accessed. | Model 907 except code FS1 (Mirror bracket, extended) or code FS2 (Mirror bracket, extra long), except code XL4 (Weight variant 5, 500 kg), code ZU7 (Canada national version) or code ZU8 (USA national version) | |
| 3.2 | Unclip catch hooks (arrows) and remove outside mirror adjustment motor (1) from carrier until electrical connector (3) can be accessed. | Model 907 with code FS1 (Mirror bracket, extended) or code FS2 (Mirror bracket, extra long), model 907 with code XL4 (Weight variant 5, 500 kg), code ZU7 (Canada national version) or code ZU8 (USA national version) | |
| 4 | Disconnect electrical connector (3) and remove outside mirror adjustment motor (1). | ||
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Perform function check of electrical functions of outside mirror. |
