Remove/Install Moldings - Ar88.80-D-1040TS

Model 907

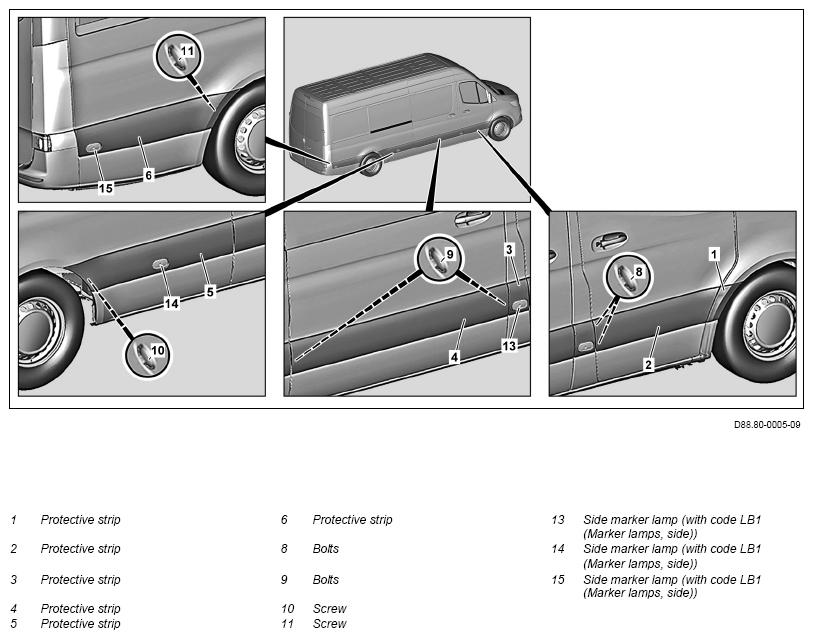

Shown on model 907.857 with code LB1 (Marker lamps, side) and with code T16 (Sliding door, right), right side of vehicle

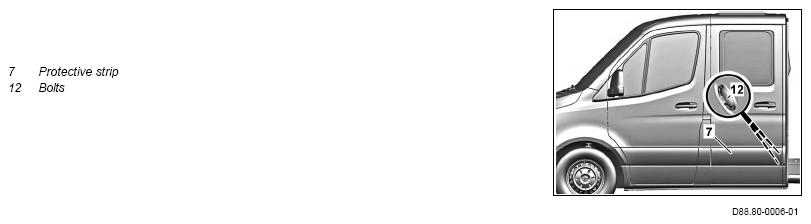

Model 907.2, left side of vehicle

	Remove/install
1	Remove respective protective strip (1)	For this purpose, unclip protective strip (1). Check retaining clips for damage. Long wedge Depending on findings ↓ Replace damaged retaining clips.	Fig 1
2	Remove respective protective strip (2)	For this purpose, remove screws (8) and unclip protective strip (2).
		Check retaining clips for damage. Long wedge Depending on findings ↓ Replace damaged retaining clips.	Fig 1
3	Remove respective protective strip (3)	Model 907 except code LB1 (Side marker lights) For this purpose, unclip protective strip (3). Model 907 with code LB1 (Side marker lights) For this purpose, unclip protective strip (3) and disconnect electrical connector of side marker lamp (13). Check retaining clips for damage. Long wedge Depending on findings ↓ Replace damaged retaining clips.	Fig 1
4	Remove respective protective strip (4)	Model 907.6/7/8 Except code T16 (Sliding door, right) right side of vehicle, except code T19 (Sliding door, left) left side of vehicle For this purpose, unclip protective strip (4). With code T16 (Sliding door, right) right side of vehicle, with code T19 (Sliding door, left) left side of vehicle For this purpose, remove screws (9) and unclip protective strip (4). Check retaining clips for damage. Long wedge Depending on findings ↓ Replace damaged retaining clips.	Fig 1
5	Remove respective protective strip (5)	Model 907.6/7/8 Except code LB1 (Marker lamps, side) For this purpose, remove screw (10) and unclip protective strip (5). With CODE LB1 (Marker lamps, side) For this purpose, remove screw (10), unclip protective strip (5) and disconnect electrical connector of side marker lamp (14). Check retaining clips for damage. Long wedge Depending on findings ↓ Replace damaged retaining clips.	Fig 1
6	Remove respective protective strip (6)	Model 907.6/7/8 Except code LB1 (Marker lamps, side) For this purpose, remove screw (11) and unclip protective strip (6). With CODE LB1 (Marker lamps, side) For this purpose, remove screw (11), unclip protective strip (6) and disconnect electrical connector of side marker lamp (15). Check retaining clips for damage. Long wedge Depending on findings ↓ Replace damaged retaining clips.	Fig 1
7	Remove respective protective strip (7)	Model 907.2 For this purpose, remove screws (12) and unclip protective strip (7). Check retaining clips for damage. Long wedge Depending on findings ↓ Replace damaged retaining clips.	Fig 1
8	Install in the reverse order

Fig 1: Long Wedge (115 589 03 59 00)
