Remove/Install Mirror Glass - Ar88.70-D-9020TS

Model 907

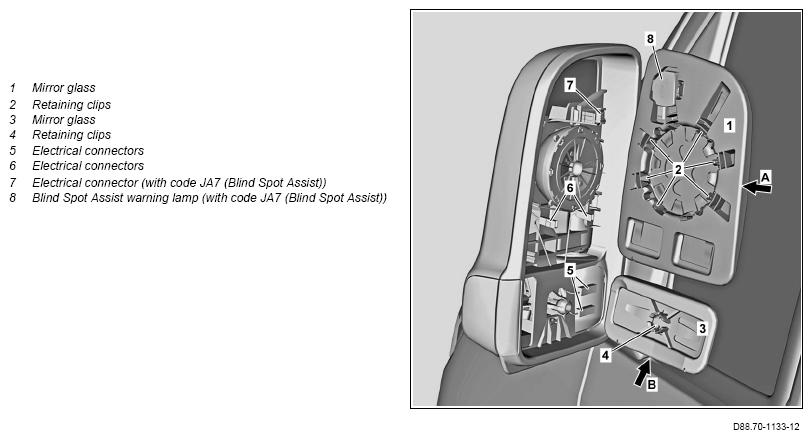

Shown on the left side of the vehicle, with code JA7 (Blind Spot Assist)

	Remove/install
1	Remove respective mirror glass (1, 3) from each outside mirror	Carefully clip respective mirror glass (1, 3) out and in. This prevents damage. To do this, carefully insert long wedge at the side of the mirror glass (1) (arrow A) or against the mirror glass (3) from underneath (arrow B) and carefully clip out respective mirror glass (1, 3). Check retaining clips (2) of the mirror glass (1) or retaining clips (4) of the mirror glass (3) for damage. Long wedge Depending on findings ↓ Replace respective mirror glass (1, 3).	Fig 1
2	Remove Blind Spot Assist warning lamp (8) from the mirror glass (1)	Model 907 with code JA7 (Blind Spot Monitoring) When removing the mirror glass (1). To do this, unclip Blind Spot Assist warning lamp (8).
3	Disconnect corresponding electrical connectors (5, 6)	Model 907 with code F68 (Exterior mirrors, electr. adjustable and heated) To do this, carefully remove electrical connectors (5, 6). Prevents damage.
4	Install in the reverse order
	Clean
5	Clean respective mirror glass (1, 3)
	Check
6	Carry out function check of the electrical functions of respective mirror glass (1, 3)	The extent of electrical functions varies depending on the vehicle equipment.

Fig 1: Long Wedge (115 589 03 59 00)
