Remove/Install Lower Front Fender - Ar88.10-D-0002TS
Model 907
Shown on model 907, left side of vehicle
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove | |||
| 1 | Raise vehicle | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 2 | Remove protective strip (4) | AR88.80-D-1040TS | |
| 3 | Remove expansion rivets (2) | ||
| 4 | Unscrew nut (3) | ||
| 5 | Remove lower front fender (1) | Carefully remove lower front fender (1). Paint of adjacent component parts may otherwise be damaged. |
|
| Install | |||
| 6 | Position lower front fender (1) on vehicle | Carefully position lower front fender (1). Paint of adjacent component parts may otherwise be damaged. |
|
| 7 | Slightly screw in screws (5) by hand and slightly screw on nut (3) by hand | ||
| 8 | Align lower front fender (1) | Gap dimensions of fender | *BE60.00-N-1002-01TS |

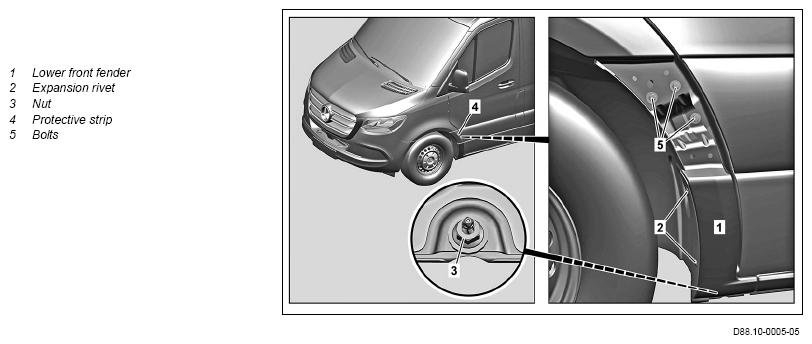

| Fig 1 | |||
| 9 | Tighten screws (5) and nut (3) General notes on touch-up applicators and paint spray cans |
If paint damage is present at screws (5) and/or nut (3). ↓ Touch up paint damage with suitable touch-up paint pen. http://xentryportal.mercedes-benz.com |
AH98.00-P-9409-06A |
| 10 | Install expansion rivet (2) | Depending on findings ↓ Replace damaged expansion rivet (2). |
|
| 11 | Add cavity preserving agent | When replacing lower front fender (1). | AR97.20-D-1500TS |
| 12 | Install protective strip (4) | AR88.80-D-1040TS | |
| 13 | Apply underbody protection in area of nut (3) | ||
| Instructions for processing permanent underbody protection | AH97.20-P-9409-01A | ||
| Underfloor protection 800 ml | *BR00.45-Z-1001-05A |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 907.1 | Model 907.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-N-1002-01TS | Gap dimensions of fender | Fender to headlamp | Dimension "BA" | mm | 3, 2 (±1, 5) | 3, 2 (±1, 5) |
| Fender to bumper | Dimension "BB" | mm | 0, 5 (±0, 5) | 0, 5 (±0, 5) | ||
| Fender to front door | Dimension "BC" | mm | 5, 0 (±1, 3) | 5, 0 (±1, 3) | ||
| Fender to A-pillar | Dimension "BD" | mm | 2, 2 (±1) | 2, 2 (±1) | ||
| For picture, see | AR60.00-D-0700-01TS | AR60.00-D-0700-01TS | ||||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 907.6/7/8 | |||
|---|---|---|---|---|---|
| BE60.00-N-1002-01TS | Gap dimensions of fender | Fender to headlamp | Dimension "BA" | mm | 3, 2 (±1, 5) |
| Fender to bumper | Dimension "BB" | mm | 0, 5 (±0, 5) | ||
| Fender to front door | Dimension "BC" | mm | 5, 0 (±1, 3) | ||
| Fender to A-pillar | Dimension "BD" | mm | 2, 2 (±1) | ||
| For picture, see | AR60.00-D-0700-01TS | ||||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-05A | Underfloor protection 800 ml | A 001 986 46 10 |
